2100mm Width 1550mm Height Directly Gas Tunnel Oven

Place of Origin China
Brand Name SAIMAI
Certification CE IOS
Minimum Order Quantity 1
Packaging Details Wooden case, Packaging film
Delivery Time 90days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Applicable Industries Food & Beverage Factory, Food Shop, Food & Beverage Shops Video Outgoing-inspection Provided
Voltage 380v Certification CE ISO9001
After-sales Service Provided Engineers Available To Service Machinery Overseas Materials 304 Stainless Steel
Motor ABB SEW After Warranty Service Video Technical Support, Online Support
Machinery Test Report Provided
High Light

1550mm Height Directly Gas Tunnel Oven


2100mm Width Gas Tunnel Oven


SAIMAI Bakery Tunnel Oven

Leave a Message
Product Description

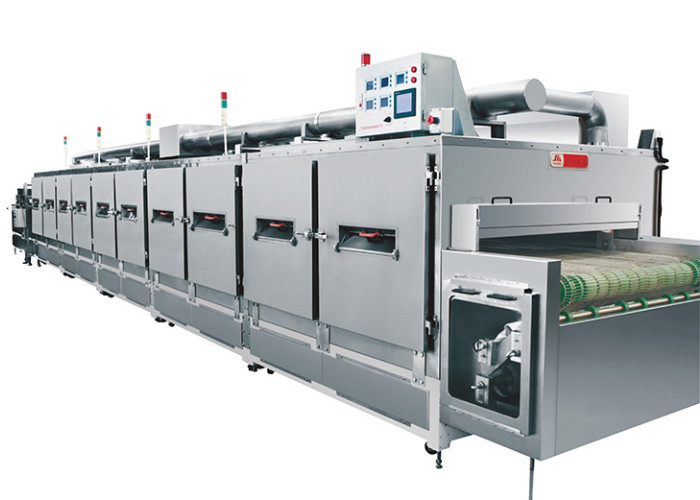

Professional Baking Production Line Directly Gas Fired Tunnel Oven



1. The oven has been designed for wide application range/multifunction and space saving.

2. 15%- 20% energy saving comparing to other ovens.

3. High quality, high accuracy, heating with convection hot air. The temperature can be easily controlled that ensure the quality of final product.

4. Each section works independently, It’s more suitable for a wide range temperature require the product.

5. Good insulation, Energy saving, low cost, environmental protection,

6. PLC control system. Flexible for the adjustment and speed setting.

7. The side panel of the oven body can be open, It’s easy for cleaning if required.



1. The standard layout dimensions: W- 2100mm H-1550, the wide of chamber is 1400mm, H-170mm. (The final dimensions will base on the tray’s dimensions and capacity request.)

2. The baking chamber is externally insulated with loose rockwool.

3. Steel net-belt suitable for any kind of product and any kind of baking method.

4. The combustion chamber has been designed for preventing cooling crack or heating extension.

5. The loading and unloading side Equipped with emergency stop for any emergency case.

6. Each section has one exhaust that working independently. (The number of exhaust base on the total length)

7. The oven infeed &discharge entrance height can be adjusted according to the height of the product.

8. The temperature of each section can be controlled independently.


The advantage of proportion of zero-pressure gas-fired tunnel oven:
1) Insulation System:
A: Using rockwool insulation hybrid cotton, take access method for modular, more full of cotton insulation insulation properties, device power consumption to a minimum.
B: The inner wall of the oven used in all high reflection efficiency 1.5mm hot rolled steel, heat resistant, anti-rust coated, ensure the furnace loss to a minimum during baking heat.


2) Drive section:
A: The transport conveyor is the chain plate form, it use Hangzhou Donghua chain belt(European technology, customized professional manufacturers),advantages of low noise, wear-resistant high temperature of 500 degrees, chain material collected 40Cr alloy materials, after tested, ultimate tensile load reaches 100KN longer life, better stability, give customers more peace of mind.
B: Chain plate with 3mm hot rolled steel assures the strength and absorbs heat to stabilize the temperature, surface appearance, high strength, flexural resistance, proper storage of heat, stable transfer amount fiery end, the furnace temperature equilibrium. Four bolt connection.
C: ABB motor has motor auto distortion correcting function which can control the baking deviation time within 1 second. SHF and SLF starting makes the baking time adjusting convenient. ABB motor has an independent radiator.
D: Conveyor using 65Mn spring tension way, the flexibility to automatically adjust the tightness of the conveyor belt, the chain operated more in line with the requirements of mechanics, running more smoothly.
