Servo Motor Curved Conveyor Sliced Sponge Cake Baking Equipment

High Capacity 500kg/h—800kg/h Full Automatic Baking Equipment Sliced Cake Sponge Cake Production Line

The sheet layer cake are very popular sponge cake because of its light and tasty.

The layer cake are baked in the steel sheet belt and sandwiched together with one layer fillings, and finished with coating and toppings.

The mixed batter are manifold on the steel sheet and bake into tunnel oven, after baking, the cake sheet are split into linear cakes, half of them are lift up, the others are turned over and pasted cream, then the top linear cake put on the bottom layer, the layered linear cake are cut into individually sized portions then transport to packaging machine.

In addition to the drying oven, the line is suitable for producing cake rusk.

Producing perfectly layers cake relies on the accurate depositors and gentle sponge handling, combined with optimized automation to increase throughput, and minimize waste.

The line can be equipped with:

Aeration Mixing Machine

Aeration mixer for decorator (Optional)

Greasing Unit

Batter maniflod depositor

Grip decorate device

Tunnel Oven

Inclined cooling conveyor

Transversal roller cutter

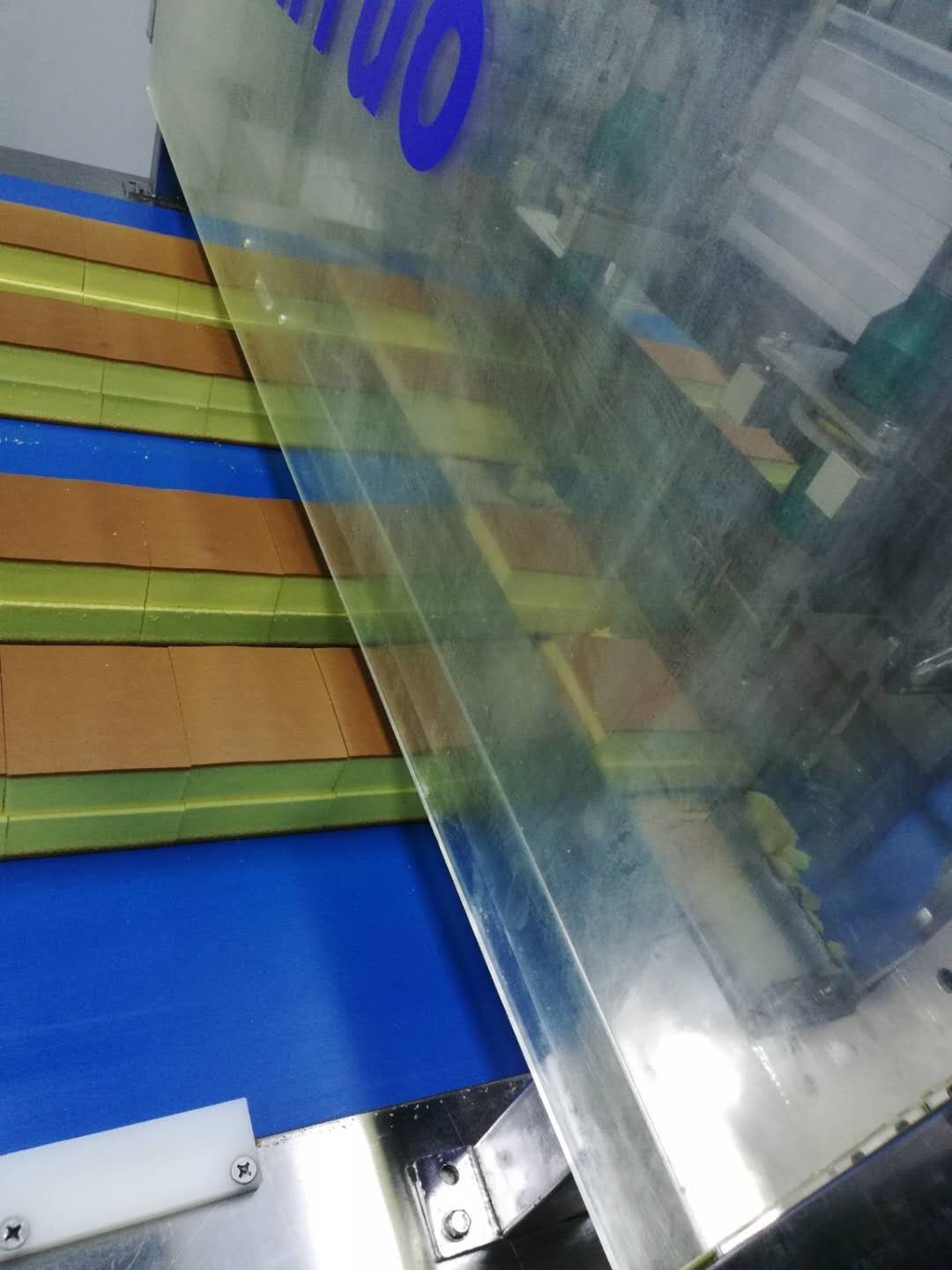

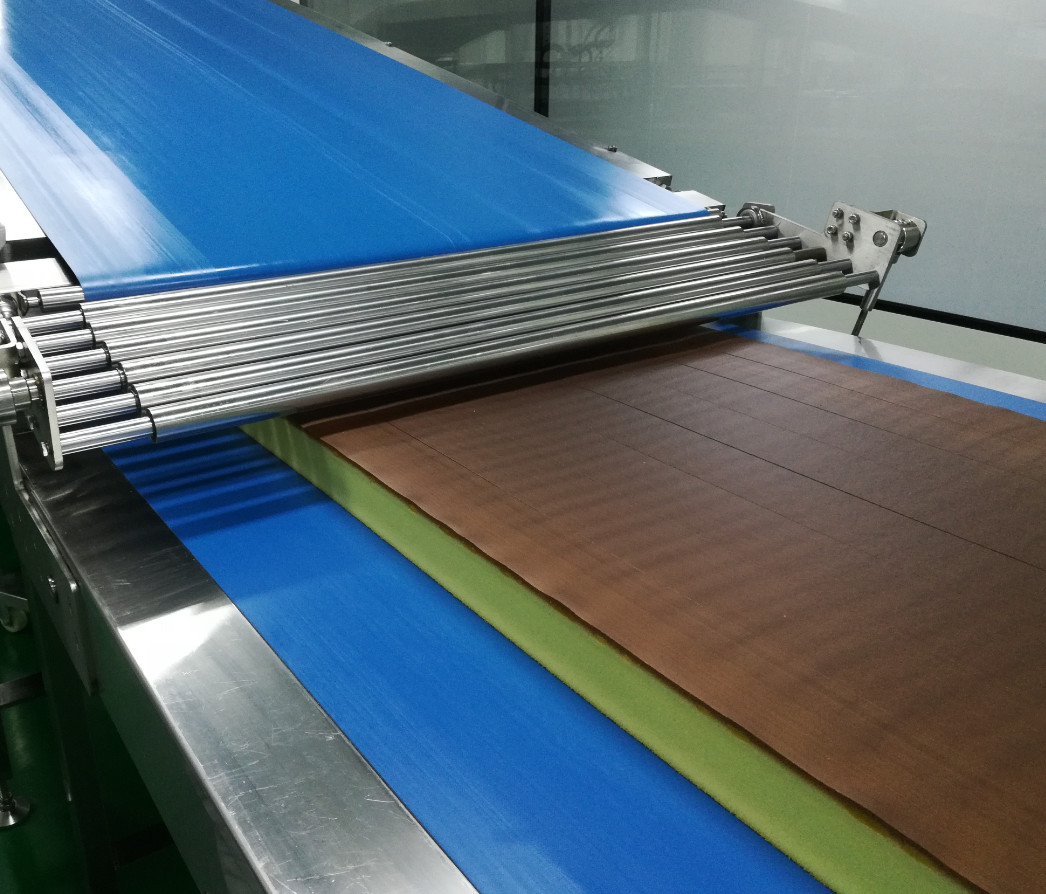

Layering units

Folding unit

Cream extruder

Cream aeration system A100L

Make-up conveyor

Ultrasonic cutter

Cooling Belt Conveyor with UV tunnel

Packaging machines

Specification of equipment :

Oil Spraking unit/ paper machine

Working width: 1M

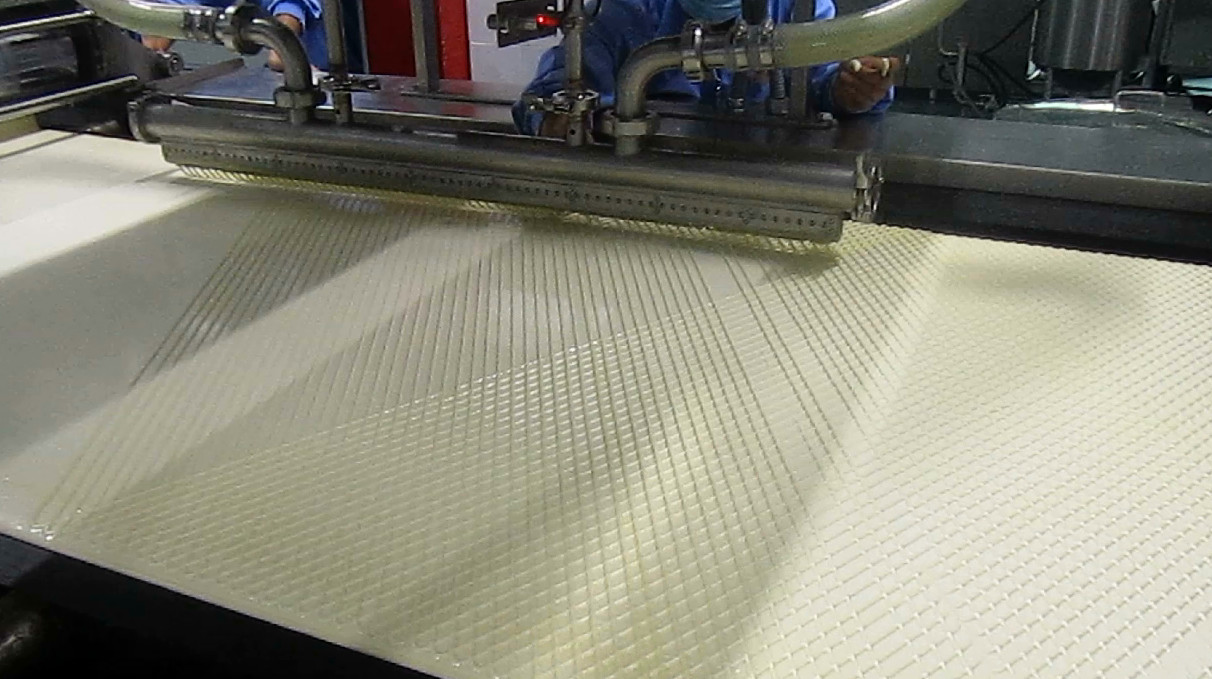

Batter depositing manifold(sheeting)

Workding width: 1M

Sheeting thickness is adjustable: from 0.6 – 1.2mm

Decoration & Lidding Machinery

Working width: 1M

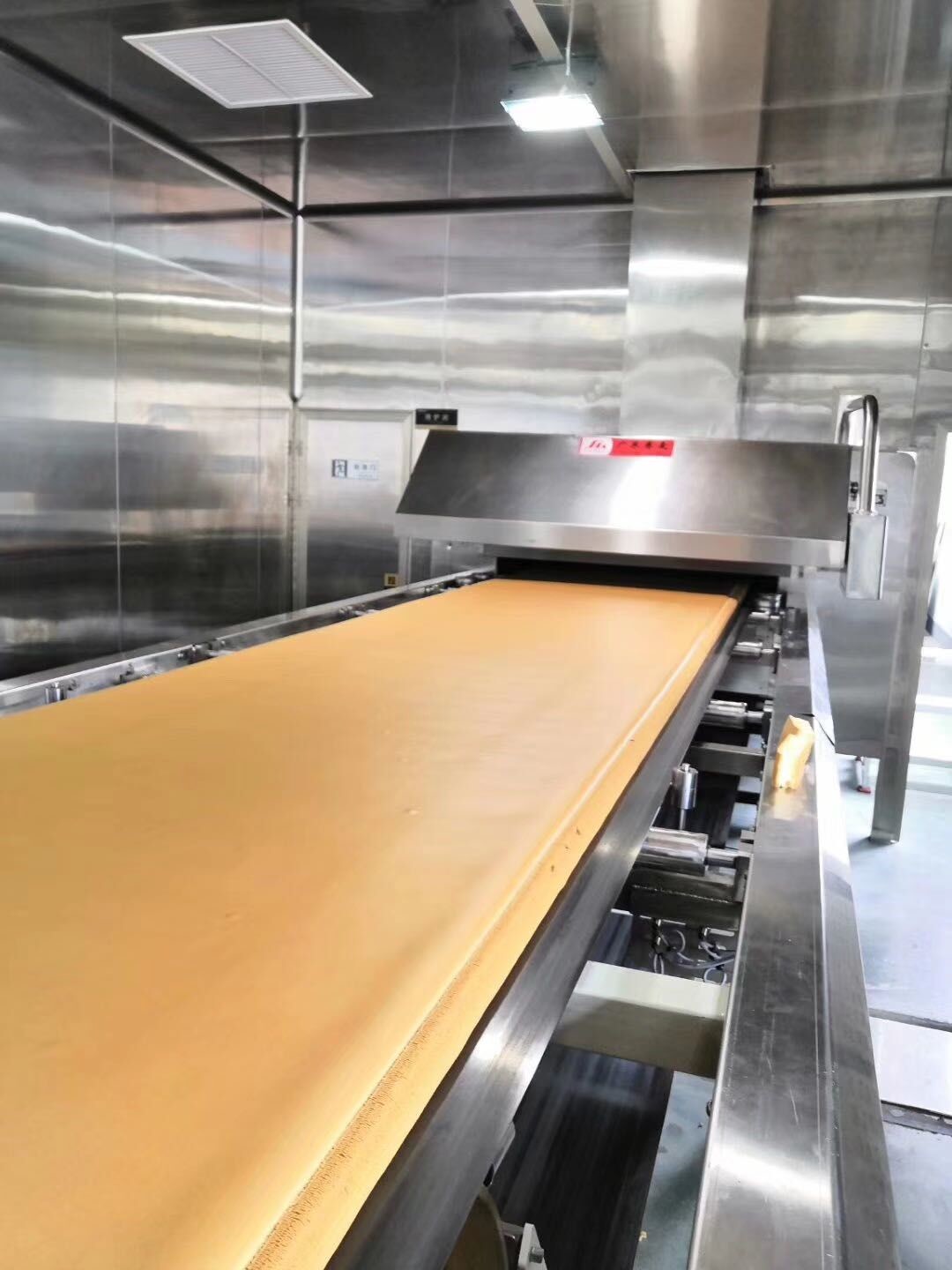

Tunnel oven

1.The oven is constructed gas-tight baking tunnel, divided into 2m/ section with gas-tight connection between sections, each section is connected with a frame.

2.The baking tunnels are insulated with high-quality insulation material, in order to reduce heat loss to a minimum.

3. View ports that can be opened are fitted at the oven sides for every zone.

4. The operating panel is fitted near the oven out feed. Operation can be from either right or left hand side.

5. The temperature is controlled in each baking zone independently, for both upper and bottom flames. Each temperature reading be measured and displayed on touch screen and temperature controller.

6. Production transportation way: BY steel belt

7. An OMRON PLC system is used for the oven production control.

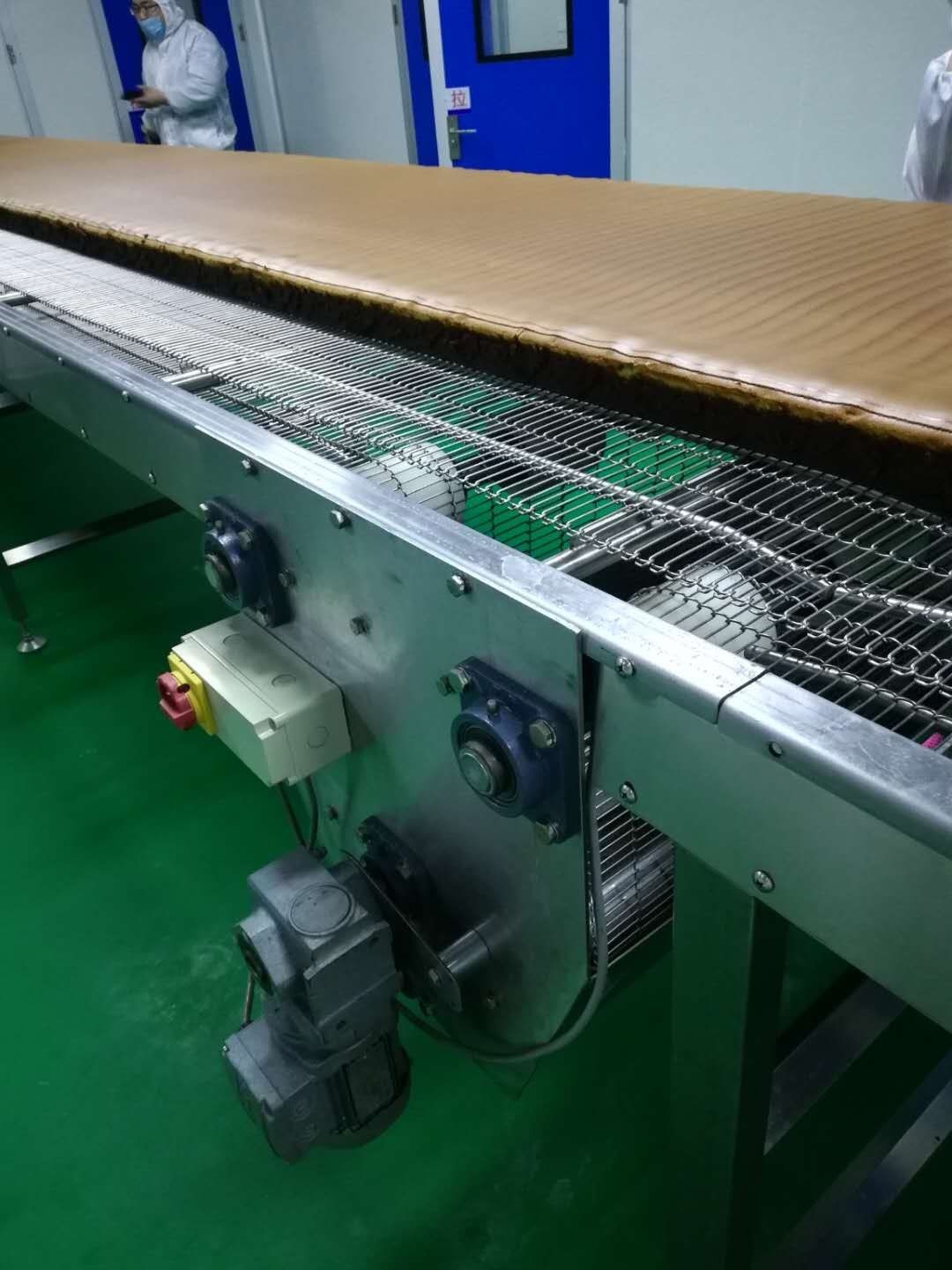

Cooling conveyor

Ultrasonic slicer

Customized ultrasonice slicer provided with a knife to cut the products at length, the no. of strokes is adjustable up to 55 strokes per minutes; maximum cutting height 60mm; cutting length adjustable by means of servo motor.

Product conveyors

180⁰curve conveyor

Transfer swiss roll and layer cake from make up line conveyor to cooling conveyor, Executed with its own AC frequency controlled speed drive.

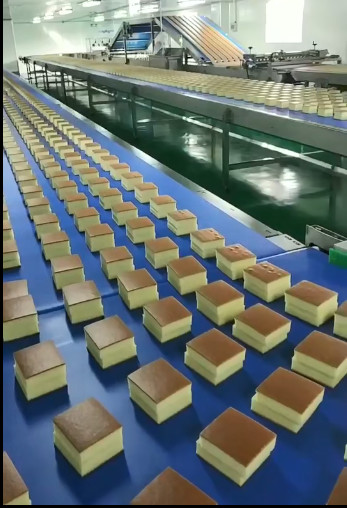

Cooling conveyor with 6meters UV shade

Working width1200mm,with 6Meters UV shade, Executed with its own AC frequency controlled speed drive in connection with packaging line.
