PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color

Place of Origin China
Brand Name Saimai
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case, Wooden pallet
Delivery Time 90days
Payment Terms T/T, L/C
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/380V Certification CE,ISO
Material 304 Stainless Steel Application Cookies Maker
Warranty 1 Year After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Free Spare Parts,Online Support
High Light

PLC Touch Screen Cookie Depositor Machine

,

1.2M Width Cookie Depositor Machine

,

Depositor Cookie Production Line

Leave a Message
Product Description

Automatic Cookie Production Line Industrial Cookie Machines Cookie Depositor



Our industrial cookie making machines are automated meaning manual supervision or intervention is at a minimal. Automated machines are great for industrial and commercial use because of the reduced labor cost and production time as well.

If your current cookie manufacturing equipment requires manual tuning, it is right time you invest in the fully automated industrial cookie machines.

The cookies can be deposited either directly onto an oven band or onto baking trays on a conveyor. SAIMAI’s indirect heated oven which has air circulation system is suitable for baking cookie, which can ensure every biscuit is even colored and has perfect texture.



Feature

> More than one style
> Higher output
> Adjustable production speed

> Adjustable product thickness



The line can be equipped with:

Cookie Depositor

Online Cookie Depositor

Tunnel Oven

Multi-layer Cooling Belt Conveyor

Chocolate Coating Machine (optional)

Spiral Cooler(optional)

Packaging machines

On-line cookie depositor—wire cut/ dropping

1. Working width: 1.2M

2. The reciprocating moving head Depositor is for deposited or wire-cut one color cookies and soft centre cookies, with the addition of one hopper for the filling.

3.The depositing head is consisting of a hopper with a pair of grooved feeding rollers that leads the dough to the individual positive displacement pumps, one for each outlet, at constant pressure, allowing a very accurate dosing, without any variation in weight and volume of the product.

4.The machine can work as Depositor, with vertical and horizontal motion of the head to follow the baking belt and avoiding product tails, as Wire-cutter, with head fixed over the baking belt, dough feeding by means of the pump system, cutting of the product by means of a wire fitted on a oscillating frame to feed a row of products at a time on the baking belt, as Continuous Extruder, with fixed head, feeding rollers and pumps rotating continuously giving one set of dough lanes to be cut by a guillotine before or after baking depending on the product.

5. Machine designed to be disassembled and cleaned quickly and accurately, with easily changeable accessories (wire-cut templates, nozzles and rotating nozzles).

Machine controlled by Operator Panel “ Touch screen” for control and programming of machine parameters and synchronization between machine and oven.

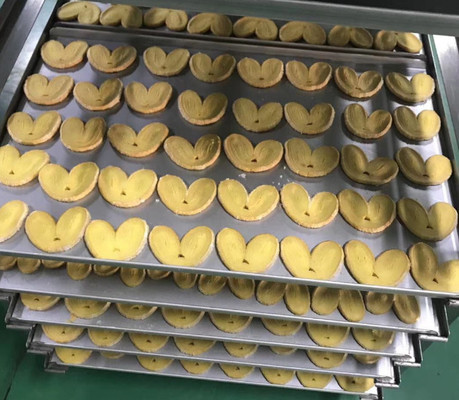

PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color 0



Baking
State of the art tunnel ovens ensures perfectly shaped, colored and textured cookies are produced every time for each recipe. Many years of experience in the line of high capacity cookie and biscuit production has allowed us to develop ovens that precisely control heat, moisture, and pressure for perfect baking results.

PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color 1

Conveyors

1. PLC systems can monitor faults and showing alarm information in  English according to the customer’s requirement. It has an open communication interface for the internet and is free to connect with other controlled systems and computer systems.

2. Incorporated the design of Europe and Japan into our equipment. Maximum reduce the cost of labor and realize real automation.

PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color 2

PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color 3

PLC Touch Screen Cookie Depositor Machine 1.2M Width Single Color 4
