Automated 380V Gas Tunnel Oven With Independent Burning Progtam Temperature Probe

Place of Origin China
Brand Name Saimai
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case, Wooden pallet
Delivery Time 90days
Payment Terms T/T, L/C
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Voltage 220V/380V
Certification CE,ISO Application Breads,cakes And Moon Cakes
Material 304 Stainless Steel Condition New
Motor SEW After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Free Spare Parts
High Light

CE Gas Tunnel Oven

,

380V Gas Tunnel Oven

,

304 Stainless Steel Bakery Tunnel Oven

Leave a Message
Product Description

As one of the manufacturers of tunnel ovens, our tunnel ovens range in working widths from 1050mm to 3300mm and can be configured for virtually any type of product. Our experience in tunnel oven technology allows us to design and commission the optimum baking solution for our clients. We offer heating systems that include, convection (indirect-heated), direct gas-fired and hybrid methods.



The direct gas fired tunnel ovens are known for their extremely high calorific power and can reach temperatures in excess of 350C. This type of oven is especially suited for baking cracker and special products with very low moisture content.

Automated 380V Gas Tunnel Oven With Independent Burning Progtam Temperature Probe 0

Compared with the standard gas oven, we design the new type gas oven with independent control of each zone, with the features as bellow:



Air supply system Each zone is equipped with an independent air supply system.

Gas supply system

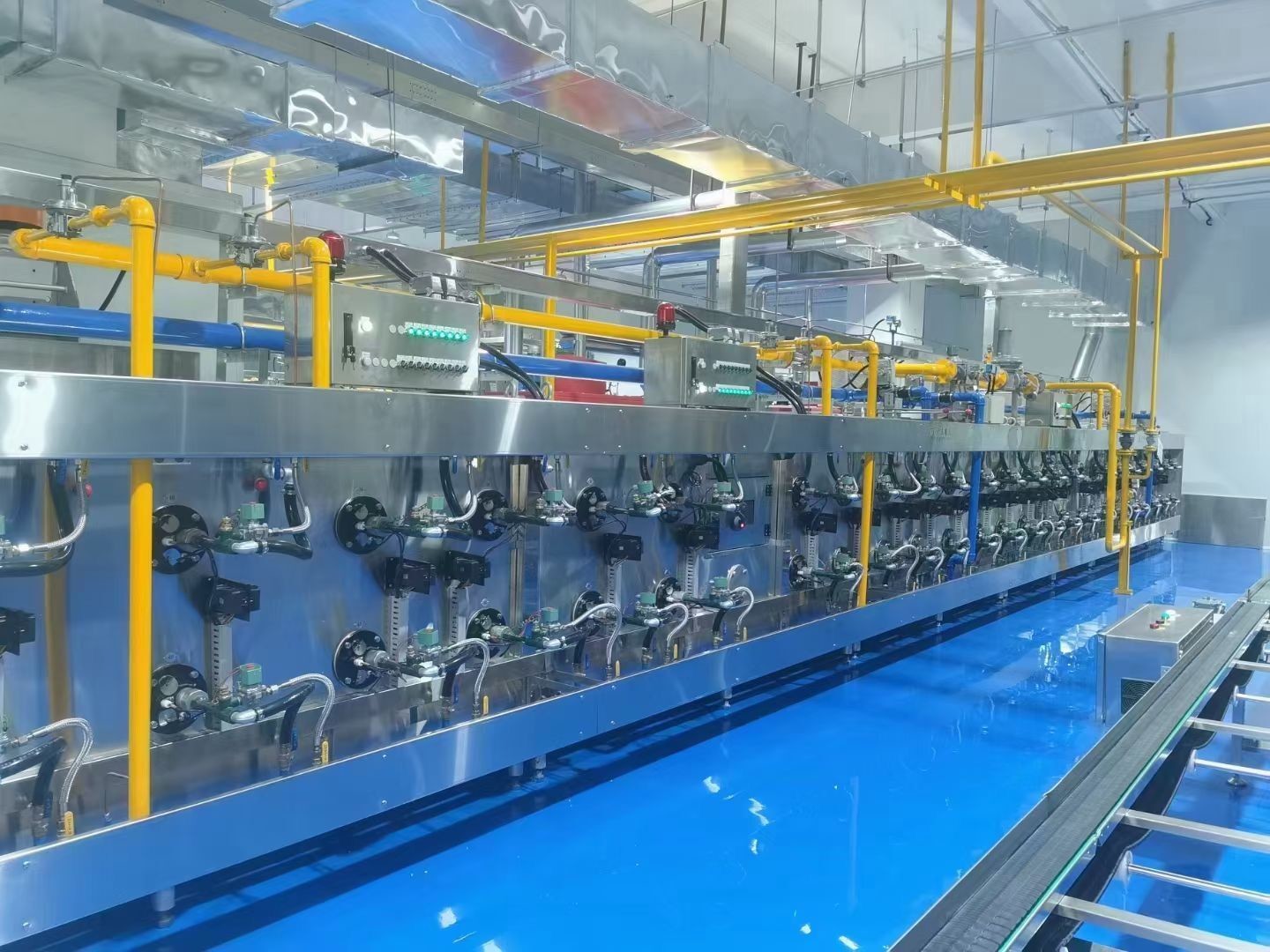

Each zone is equipped with an independent gas supply system and equipped with the dual electromagnetic slow-opening valves can prevent the sudden connection of the gas
Exhausting system It is equipped with two sets of exhaust dampers respectively at upper and lower of each zone, Each exhaust fan is equipped with independent inverter, and the exhaust volume can be adjusted in real time.

Ignition system



It is automatically controlled by the burning program controller, and each burning pipe can be selected and turned on/off from the touch screen, Flame detection ensures gas is cut off when there is no flame in the combustion system.

Temp Control system



Three temperature probes are set for the upper fire in each temperature zone, another three temperature probes are set for the bottom fire, and the average value of the three temperature measurement points is taken as the reference temperature, to reduce the measurement error and improve the temperature control accuracy.

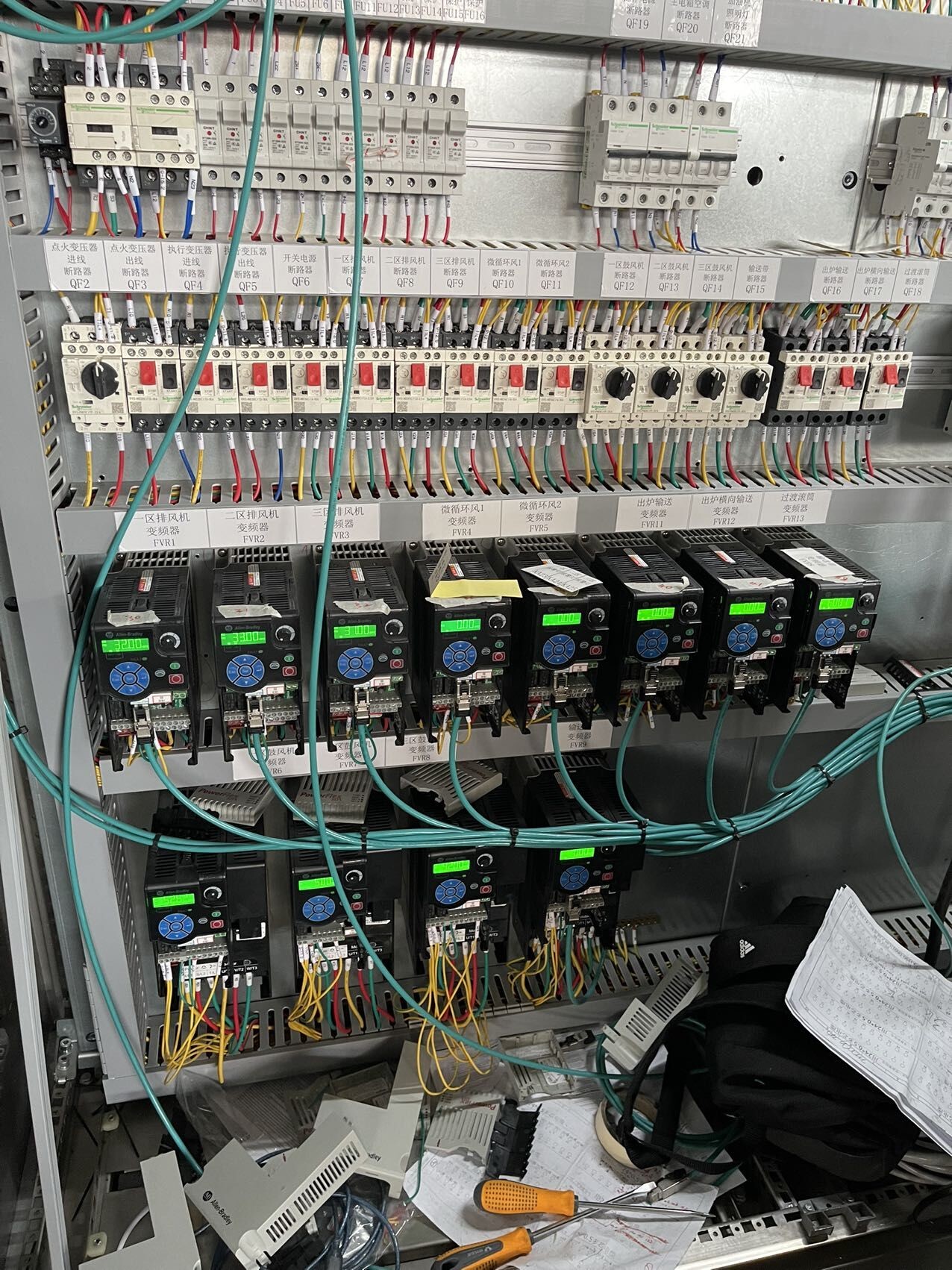

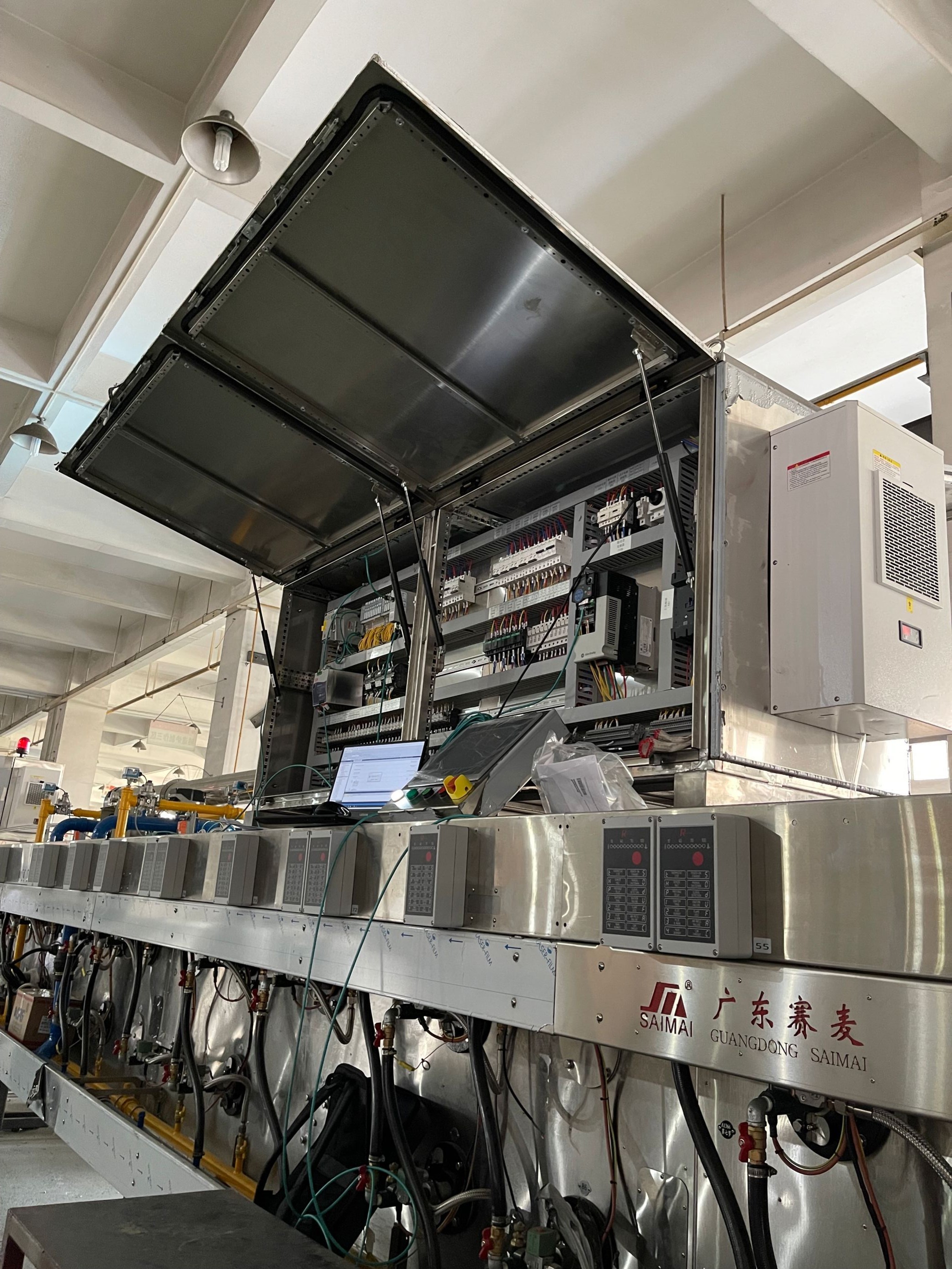

Control system The core control system is Rockwell PLC, and the distributed IO control method is used to realize regional modular control. The main control module is used to control the overall operation of the system; each zone is equipped with independent temperature control modules to achieve precise control; The whole oven is equipped with multiple safety monitoring systems to ensure the safety and stability of equipment operation.



Automated 380V Gas Tunnel Oven With Independent Burning Progtam Temperature Probe 1

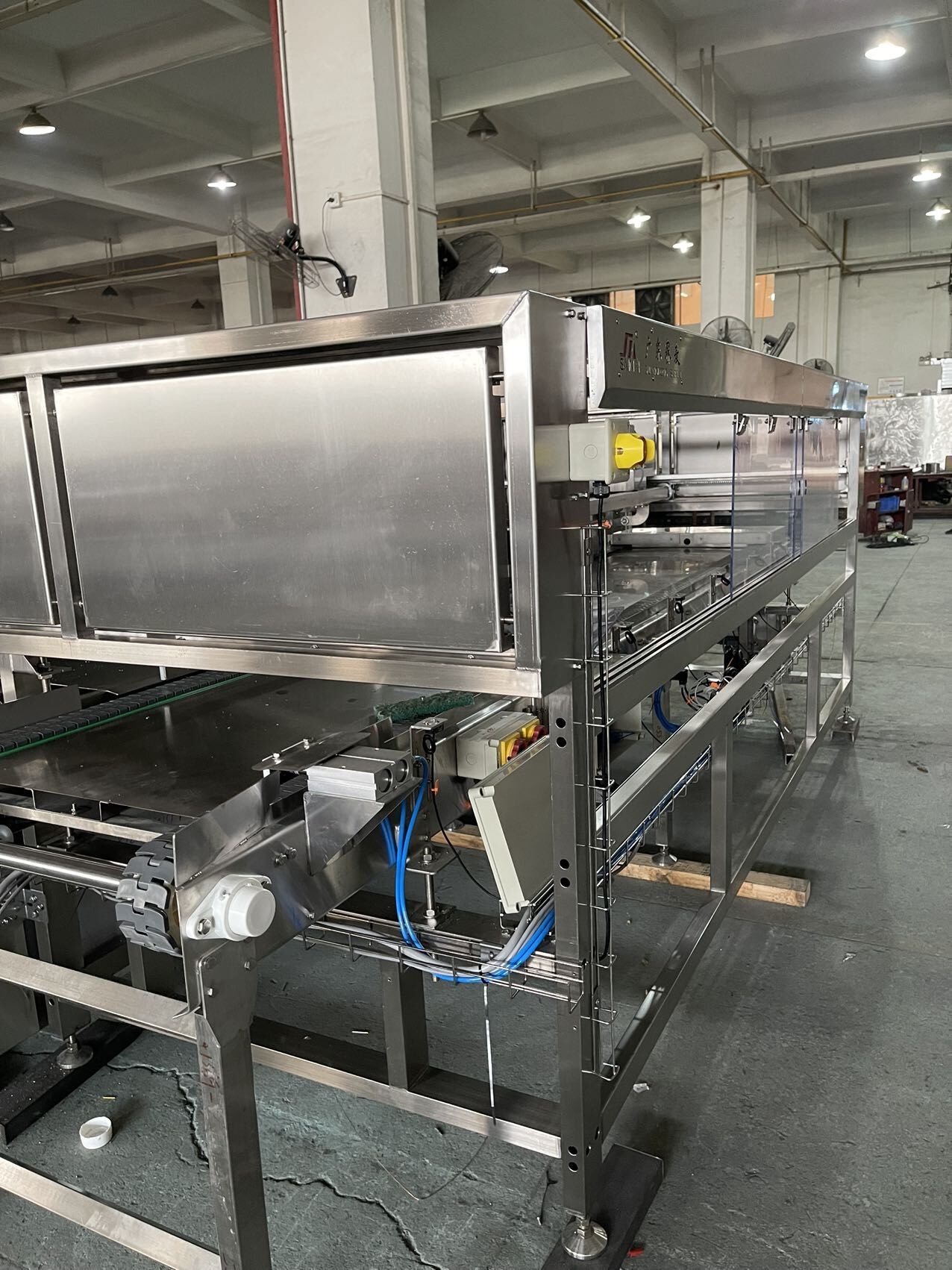

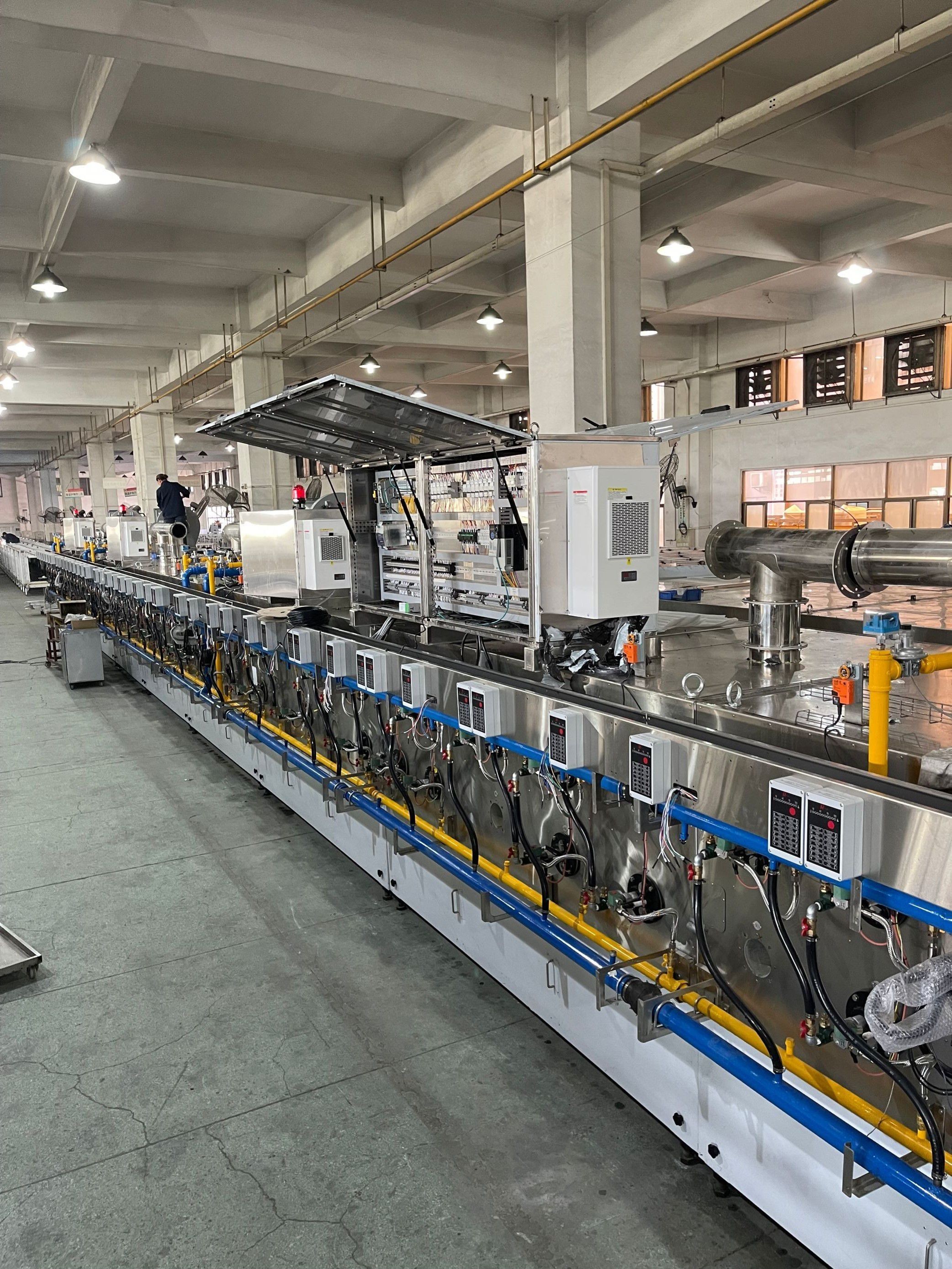

our workshop:

Automated 380V Gas Tunnel Oven With Independent Burning Progtam Temperature Probe 2

Packaging and delivery:

Automated 380V Gas Tunnel Oven With Independent Burning Progtam Temperature Probe 3
