ISO 9000 Approved Set Point Direct Gas Fired Oven Energy Saving
| Place of Origin | China |
|---|---|
| Brand Name | Saimai |
| Certification | CE Certificate, ISO 9000 Certificate |
| Model Number | Customized |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Wooden case, Wooden pallet |
| Delivery Time | 90days |
| Payment Terms | T/T, L/C |
| Supply Ability | 5Set/90-120 Working Days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/380V | Warranty | 12 Month |
|---|---|---|---|
| Dimension(l*w*h) | Customers' Requirement | Certification | CE,ISO |
| Application | Cakes, Cookies,moon Cakes | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Free Spare Parts,Online Support |
| Highlight | PLC Direct Gas Fired Oven,380V Direct Gas Fired Oven,PLC Bakery Tunnel Oven |
||
Product Description

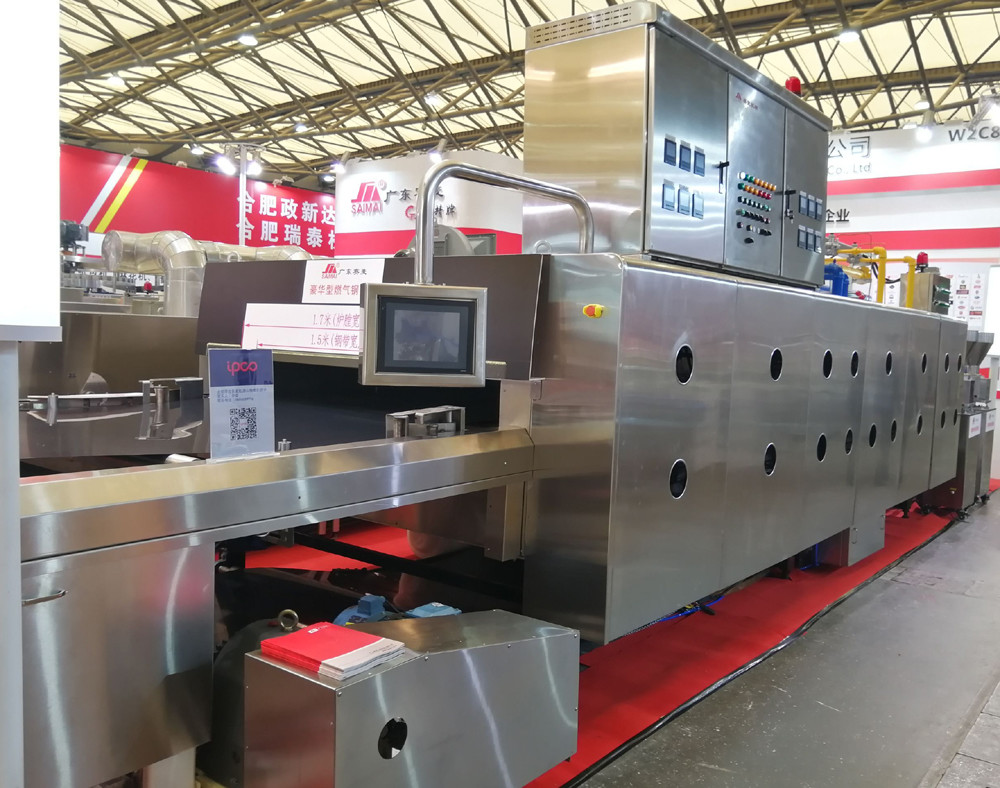

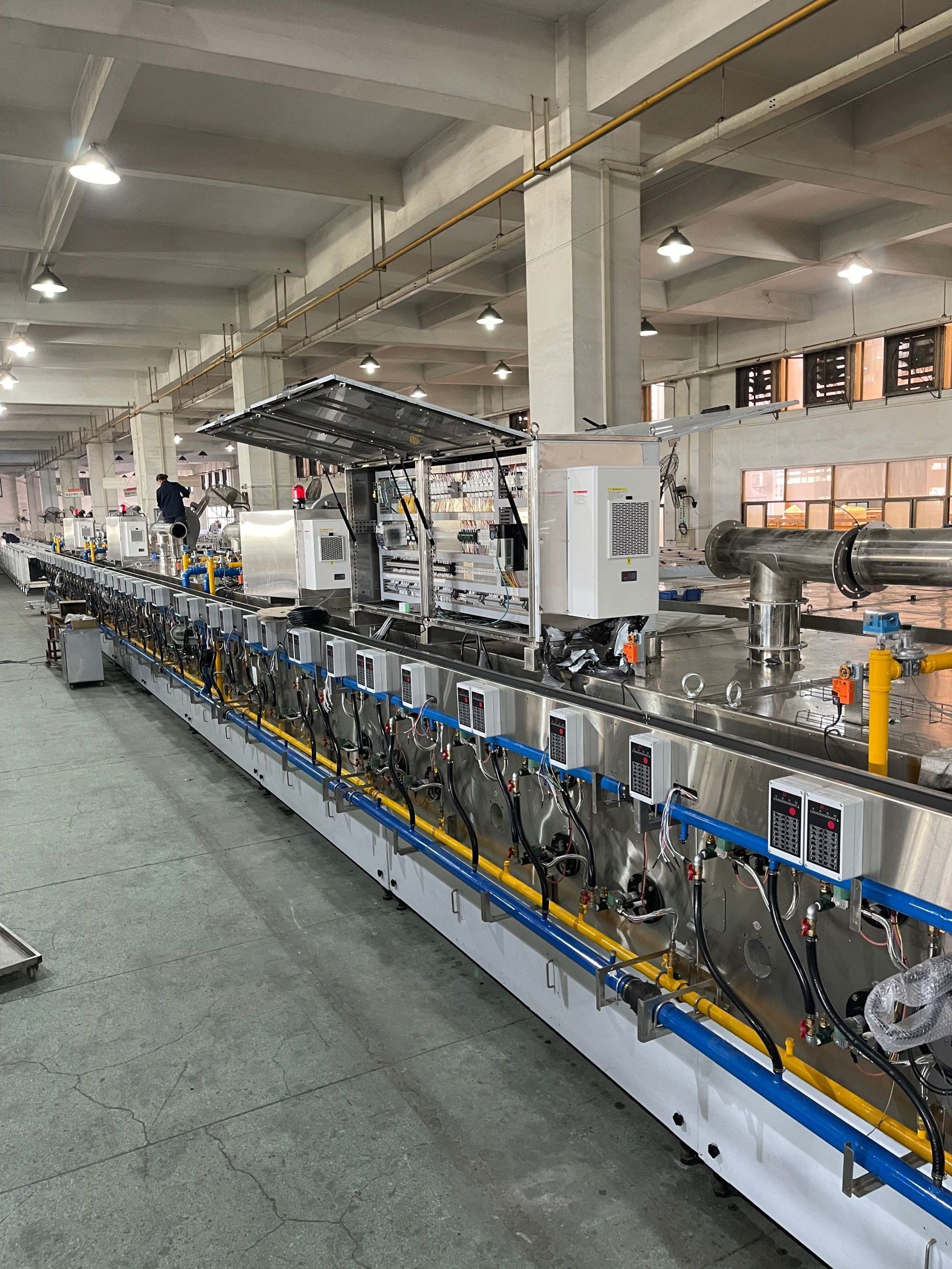

As one of the manufacturers of tunnel ovens throughout the world, our tunnel ovens range in working widths from 1050mm to 3300mm and can be configured for virtually any type of product. Our experience in tunnel oven technology allows us to design and commission the optimum baking solution for our clients. We offer heating systems that include, convection (indirect-heated), direct gas-fired and hybrid methods.
Features:
| Air supply system | Each zone is equipped with an independent air supply system. |
|

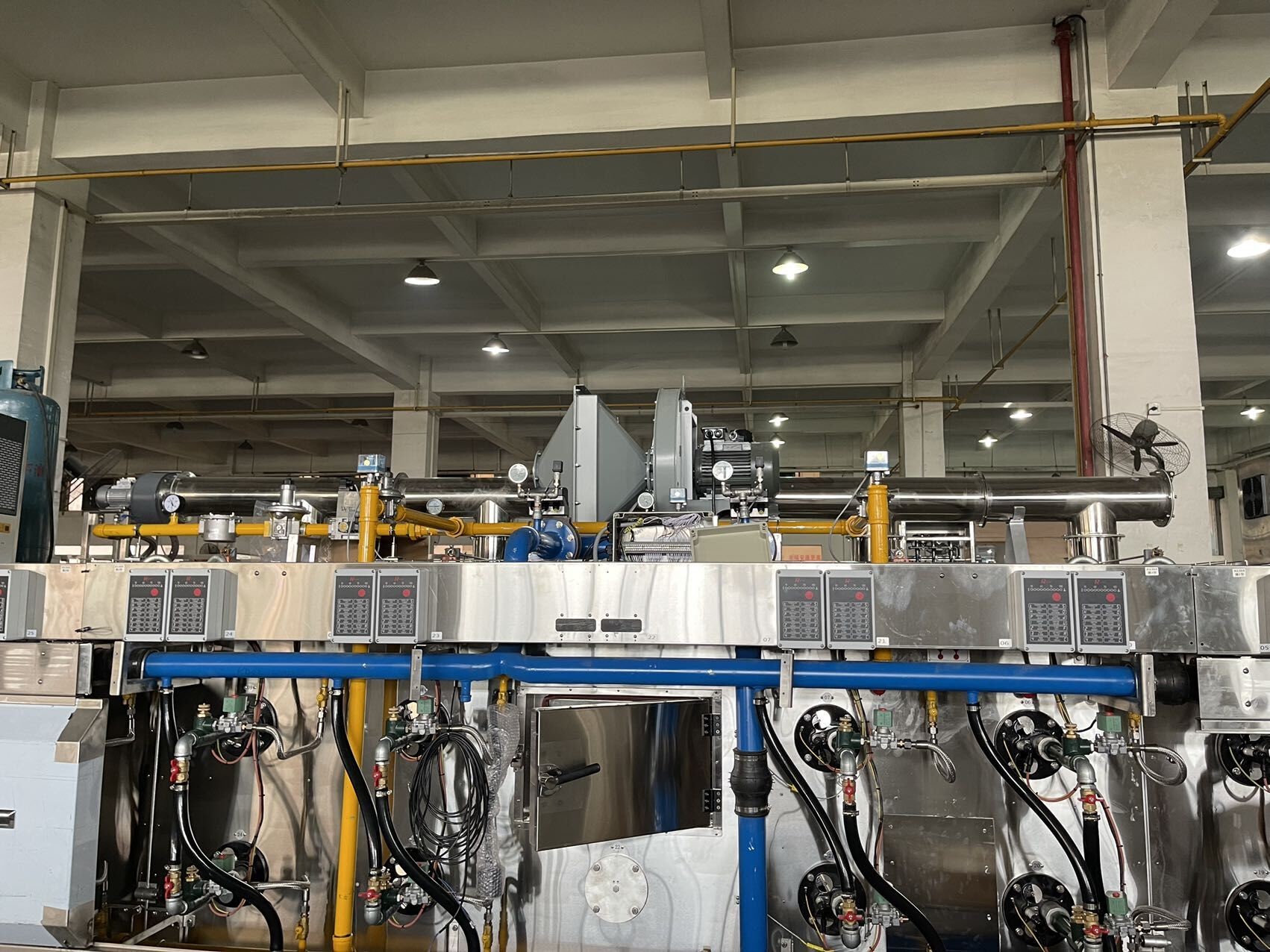

Gas supply system
|
Each zone is equipped with an independent gas supply system and equipped with the dual electromagnetic slow-opening valves can prevent the sudden connection of the gas |
| Exhausting system | It is equipped with two sets of exhaust dampers respectively at upper and lower of each zone, Each exhaust fan is equipped with independent inverter, and the exhaust volume can be adjusted in real time. |
|
Ignition system
|
It is automatically controlled by the burning program controller, and each burning pipe can be selected and turned on/off from the touch screen, Flame detection ensures gas is cut off when there is no flame in the combustion system. |
|
Temp Control system
|
Three temperature probes are set for the upper fire in each temperature zone, another three temperature probes are set for the bottom fire, and the average value of the three temperature measurement points is taken as the reference temperature, to reduce the measurement error and improve the temperature control accuracy. |

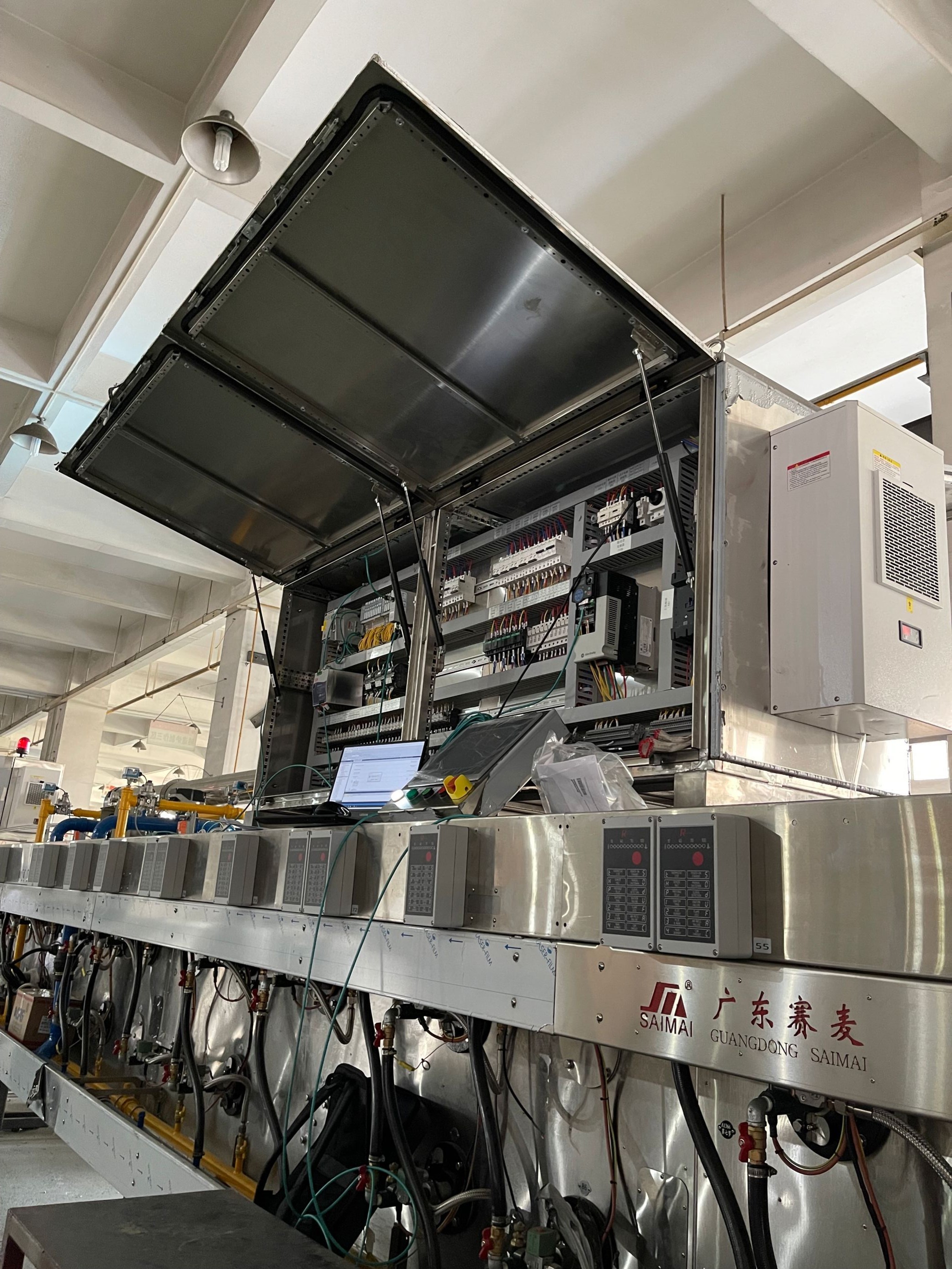

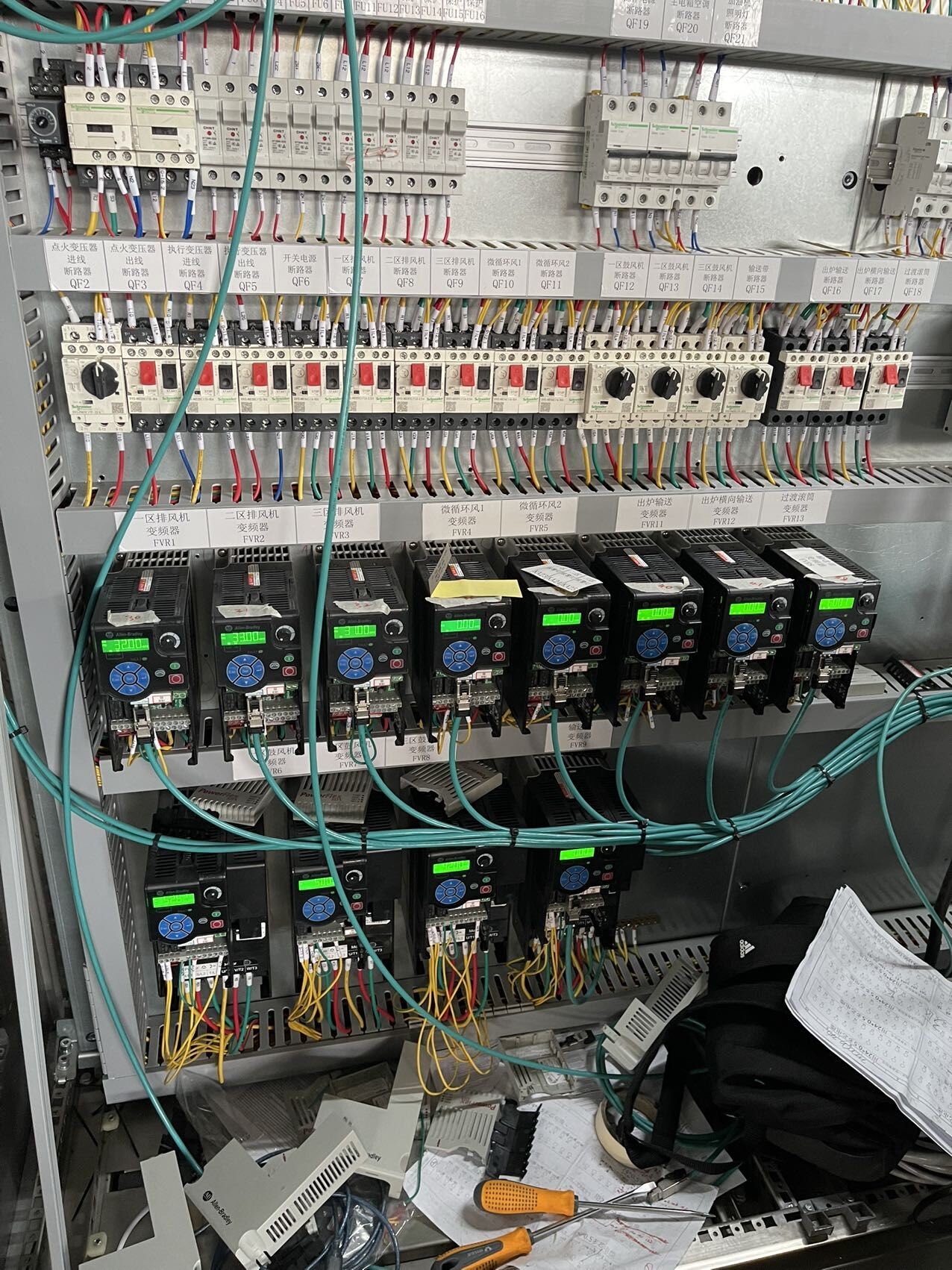

| Control system | The core control system is Rockwell PLC, and the distributed IO control method is used to realize regional modular control. The main control module is used to control the overall operation of the system; each zone is equipped with independent temperature control modules to achieve precise control; The whole oven is equipped with multiple safety monitoring systems to ensure the safety and stability of equipment operation. |
Integrated PLC Control System
a)The core control system is the PLC by Rockwell Automation, Inc. which is an American provider of industrial automation components with the brand name Aleen-bradley.
b)The PLC, and the distributed IO control method is used to realize regional modular control.
c)The main control module is used to control the overall operation of the system.
d)Each zone is equipped with independent temperature control modules to achieve precise overall control.
e)The whole oven is equipped with multiple safety monitoring systems to ensure the safety and stability of equipment operation.
