SUS304 Automatic Bread Production Line

Place of Origin China
Brand Name Saimai
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case, Wooden pallet
Delivery Time 90days
Payment Terms T/T, L/C
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Customized Condition New
Application Produce Hotdog Roll, Hamburger Bun Capacity Customized
Automatic Grade Automatic Warranty 1 Year
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
High Light

SUS304 Automatic Bread Production Line

,

1000kg/h Automatic Bread Production Line

,

Multi Step Proofer Bakery Production Line

Leave a Message
Product Description

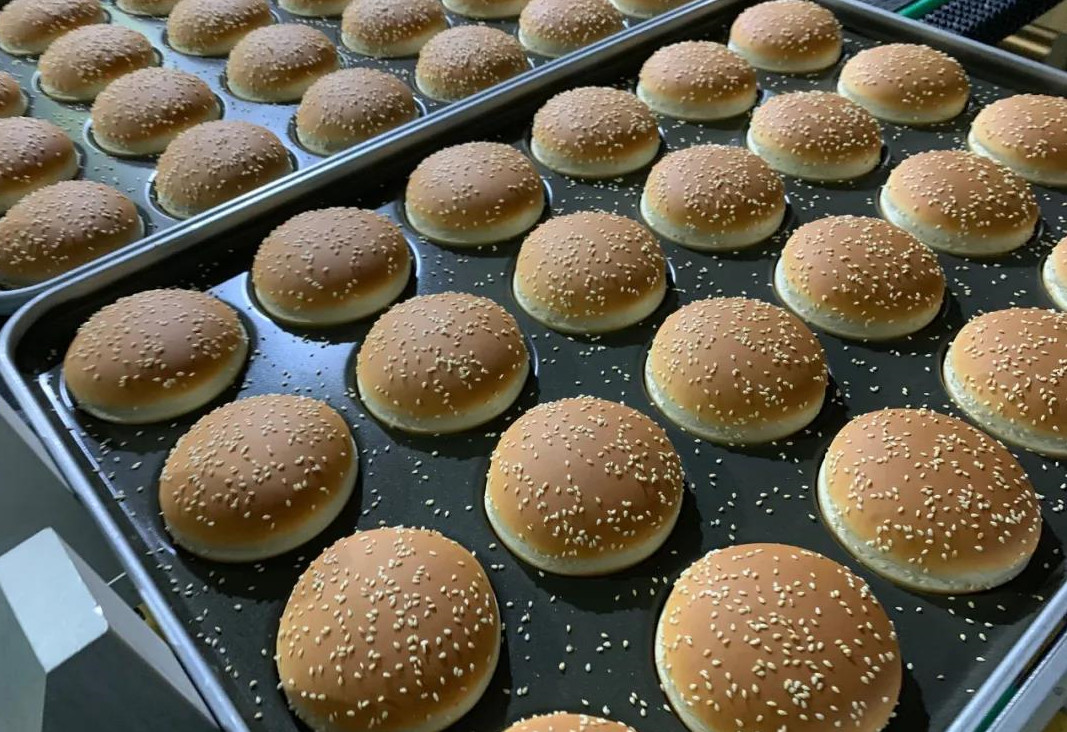

Hotdog roll and Hamburger Buns can be found worldwide, they are loved by people.
The dough are put into baking trays with moulds, and are transported into automatic final proofing room, after final proofing, the dough pieces can be decorated (seeding topping , topping or decorative cutting) before baking, the air/gas proportional controlled direct heated tunnel oven or air circulation type indirect heated tunnel oven, the baked products are cooled by spiral cooler, before packing, they can be split and paste cream or jam, the empty pans return through the pan cooling tunnel to the dough positioning and panning machine. And enter into next cycle.

According to customer’s requirement, a static proving room for trolleys, automatic trolley loader and automatic trolley un-loader can also be integrated.

Baking effect is the key to producing the perfect bread.Saimai’s tunnel oven has independent temperature control in each zone to ensure that the product coming out of the oven has a uniform texture and color. The user-friendly software saves recipes and can easily switch between products to minimize downtime and waste.

We also can customize our production lines to match the factory layout and design of our clients’ existing plants.



The line can be equipped with:

Make-up line

Automatic Step-proofer

Automatic Trolley Loader (optional)

 Automatic Trolley Un- Loader (optional)

Topping machine

Tunnel Oven

Suction Depanner/ Needle Depanner

Pan cleaning machine

Pan cooling tunnel

Pan buffer

Spiral Cooler

Sling & finning machine ( Optional)

Packaging machines

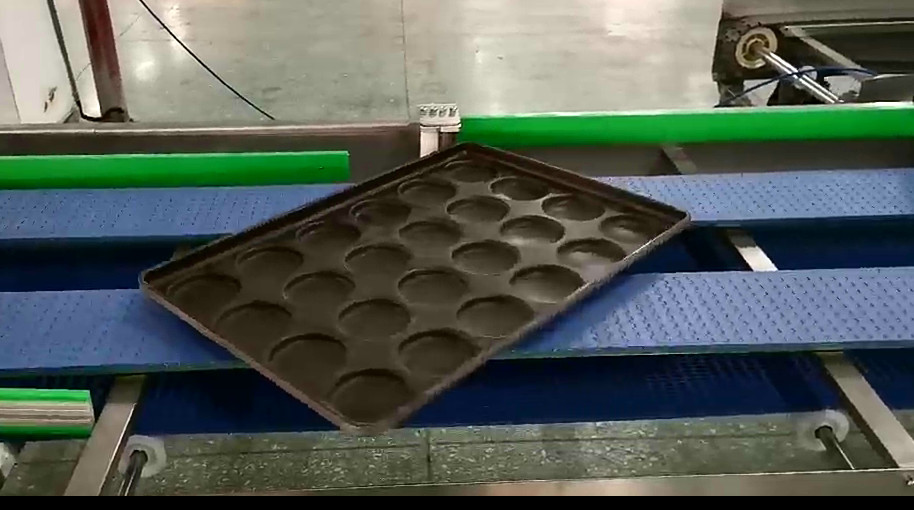

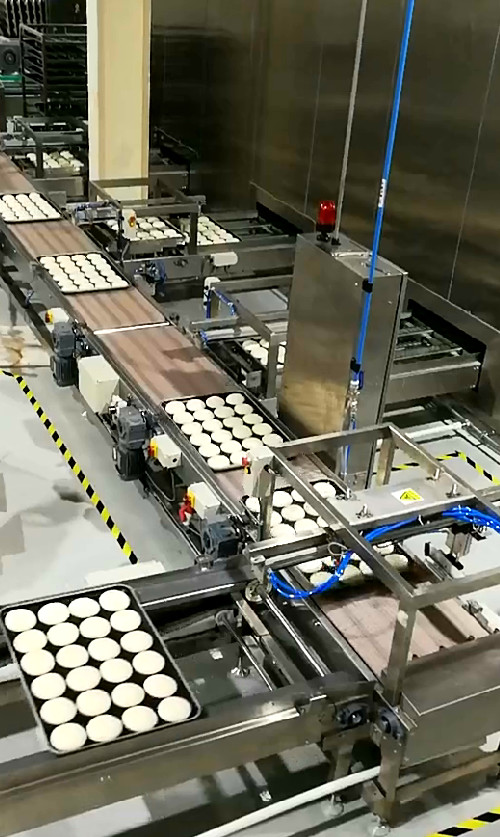

Make-up Line

Cooperate with the best Forming equipment manufacturer in China to ensure produce the best baking products for customers

SUS304 Automatic Bread Production Line 0

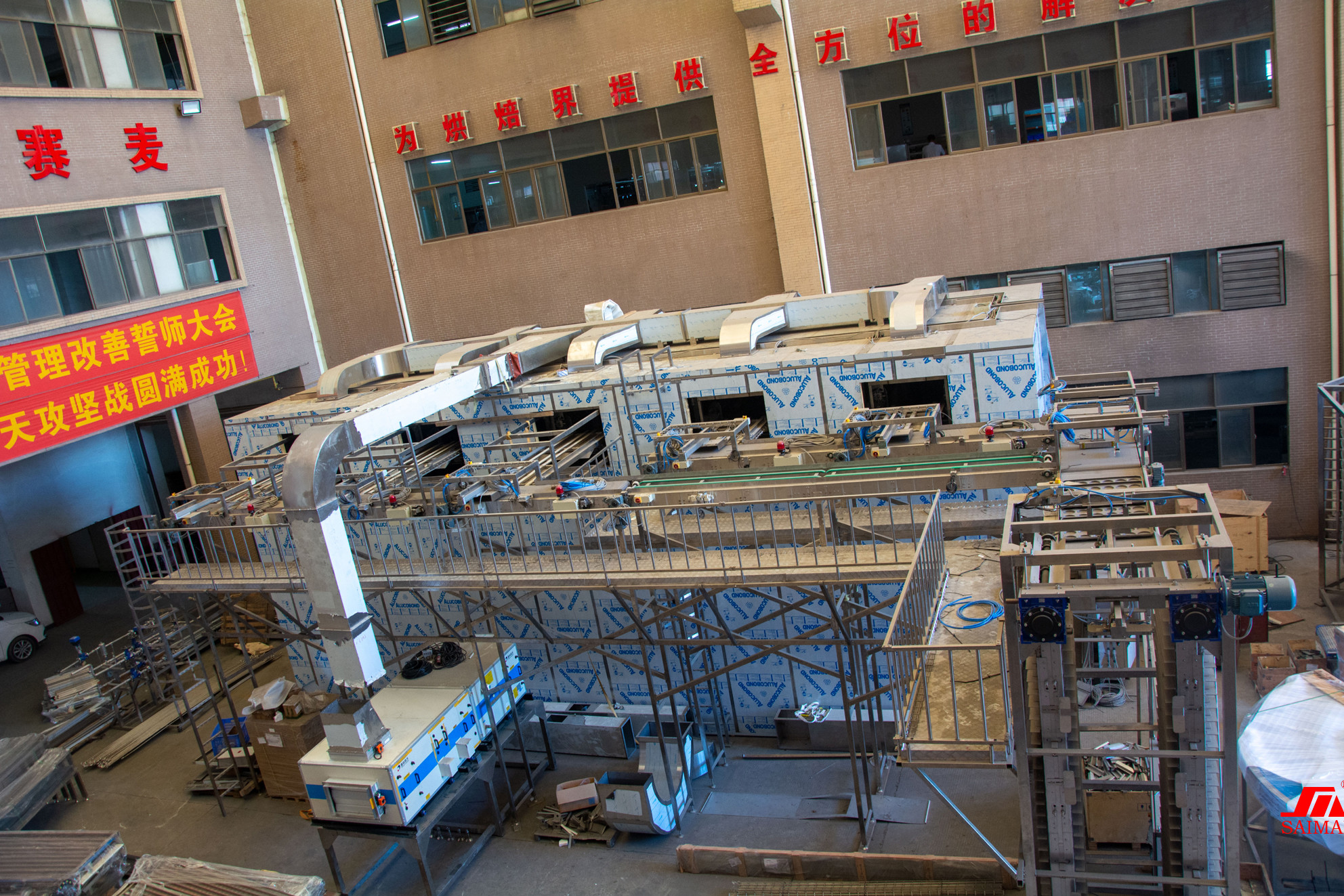

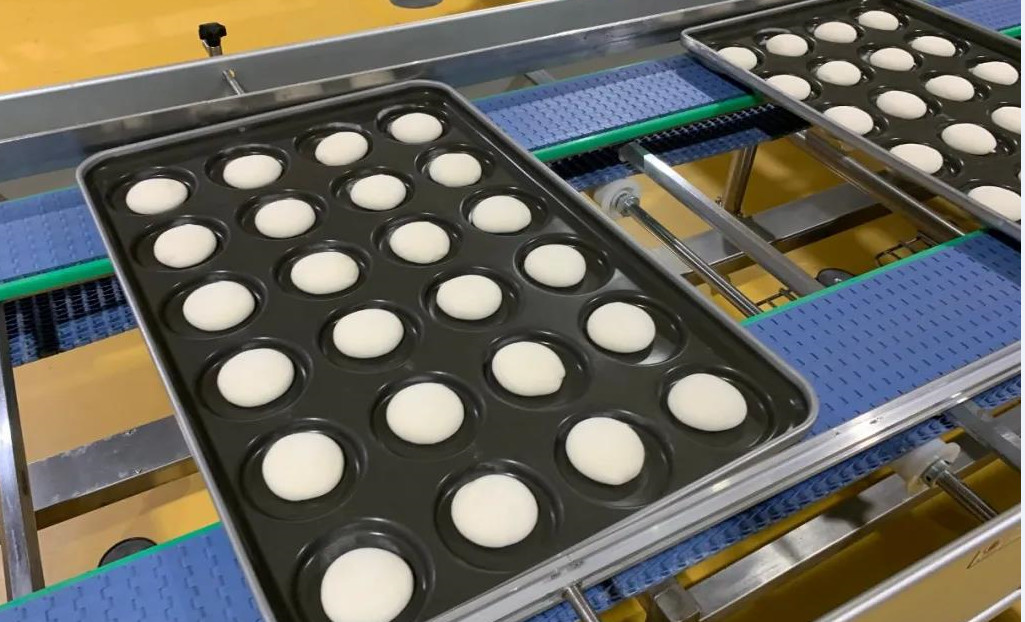

Proofing Room

Pans, trays can all be handled by the proofing room. Different tray types can be used as long as their outer dimensions are equal. The proofing room has several racks that consist of one or more levels, making the proofing time and capacity flexible without increasing the floor space.

The pans are fed into the proofer by conveyor and do not touch each other. Once a row is filled, it is lifted with an L-shape carrier. This process is repeated until the first dough has reached the top level. Then, the pans are moved out of the proofing room.

The proofing room is accommodated with a temperature and humidity control system and insulated housing.

SUS304 Automatic Bread Production Line 1

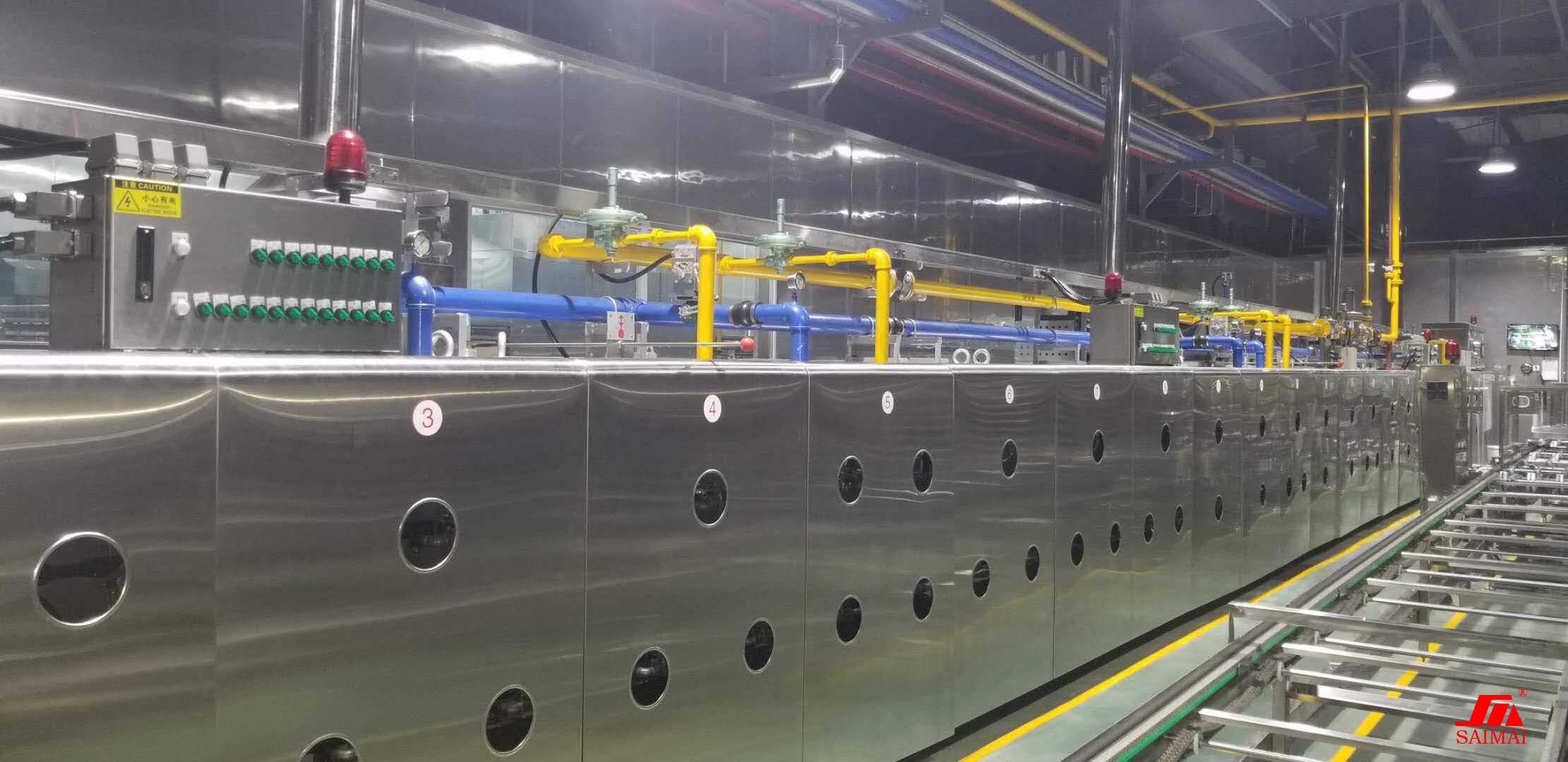

Tunnel Oven

1: The oven is constructed gas-tight baking tunnel, divided into 2m/ section. Each section is connected on a frame, with a gas-tight connection between the sections.

2: the baking tunnel are insulated with 20CM-25CM layer of high-quality insulation material, in order to reduce heat loss to a minimum.

3..Inspection door on the control side

4.Stainless steel side and top outside panel.

5.The temperature is measured in each zone, both temperature underneath and above the product to be baked. PT-100 sensors are fitted in the baking tunnel for this purpose. The measured values for each zone can be read both on the central control panel (touch panel) and moisture instrument.

6.In the event of a driving motor failure, the belt can be driven by the hand device. Which could send the product out of the oven.

7. OMRON PLC system is built into the control cabinet for the control of the oven.

SUS304 Automatic Bread Production Line 2

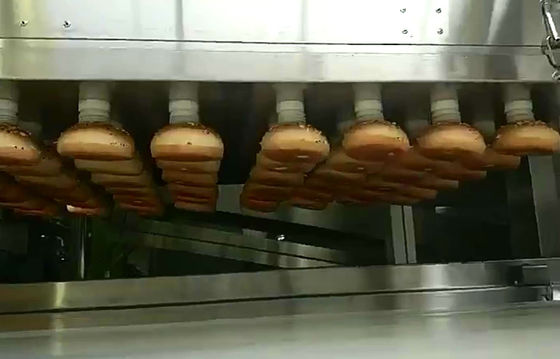

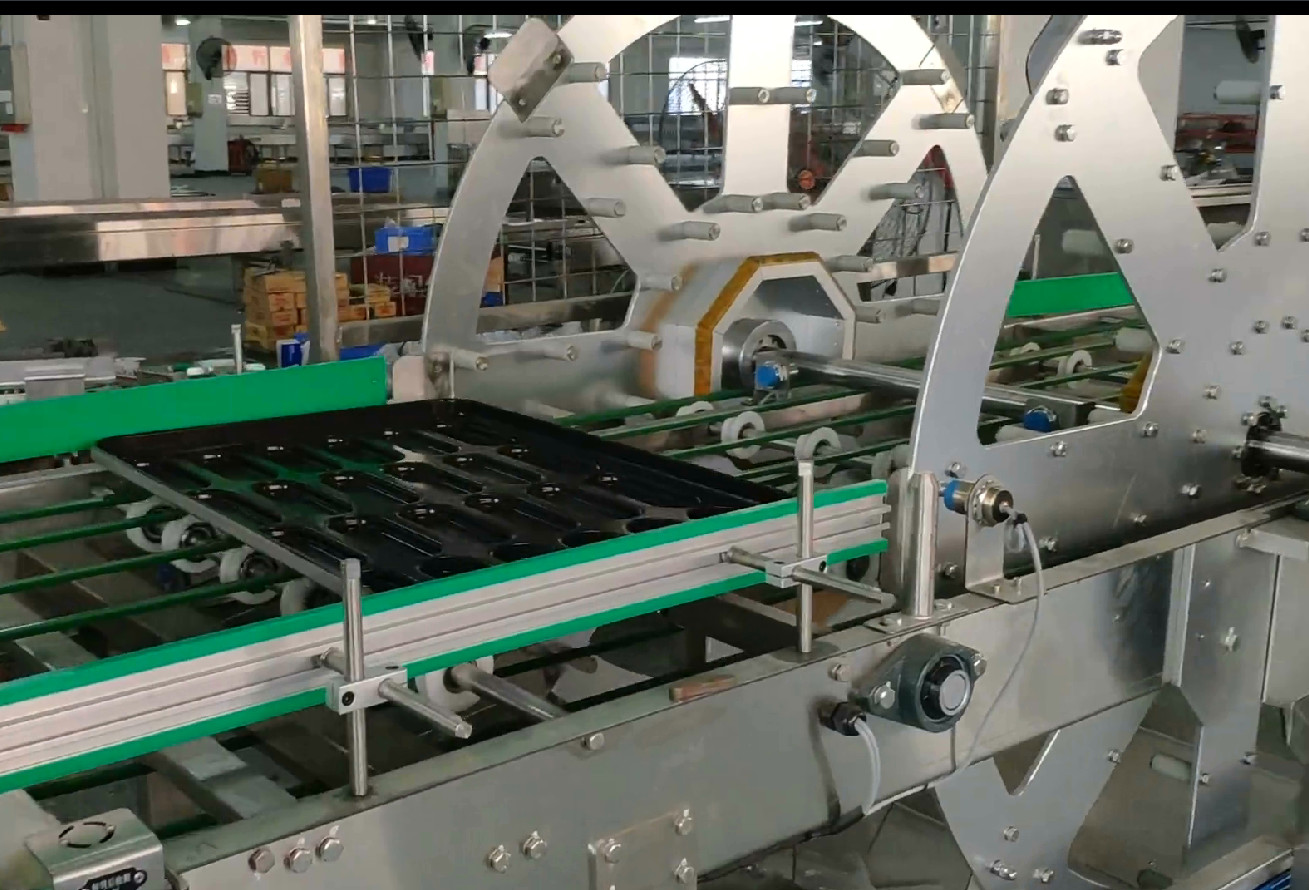

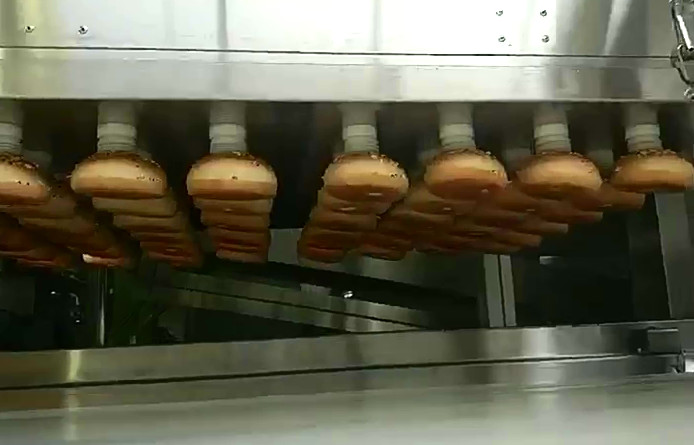

Suction Depanner/ Needle Depanner/ Flip –over depanner

By means of a pick-and-place principle, a depanning head is positioned above pans; the (exchangeable) depanning head picks up the product and then transfers it to the cooling conveyor and releases it.

SUS304 Automatic Bread Production Line 3

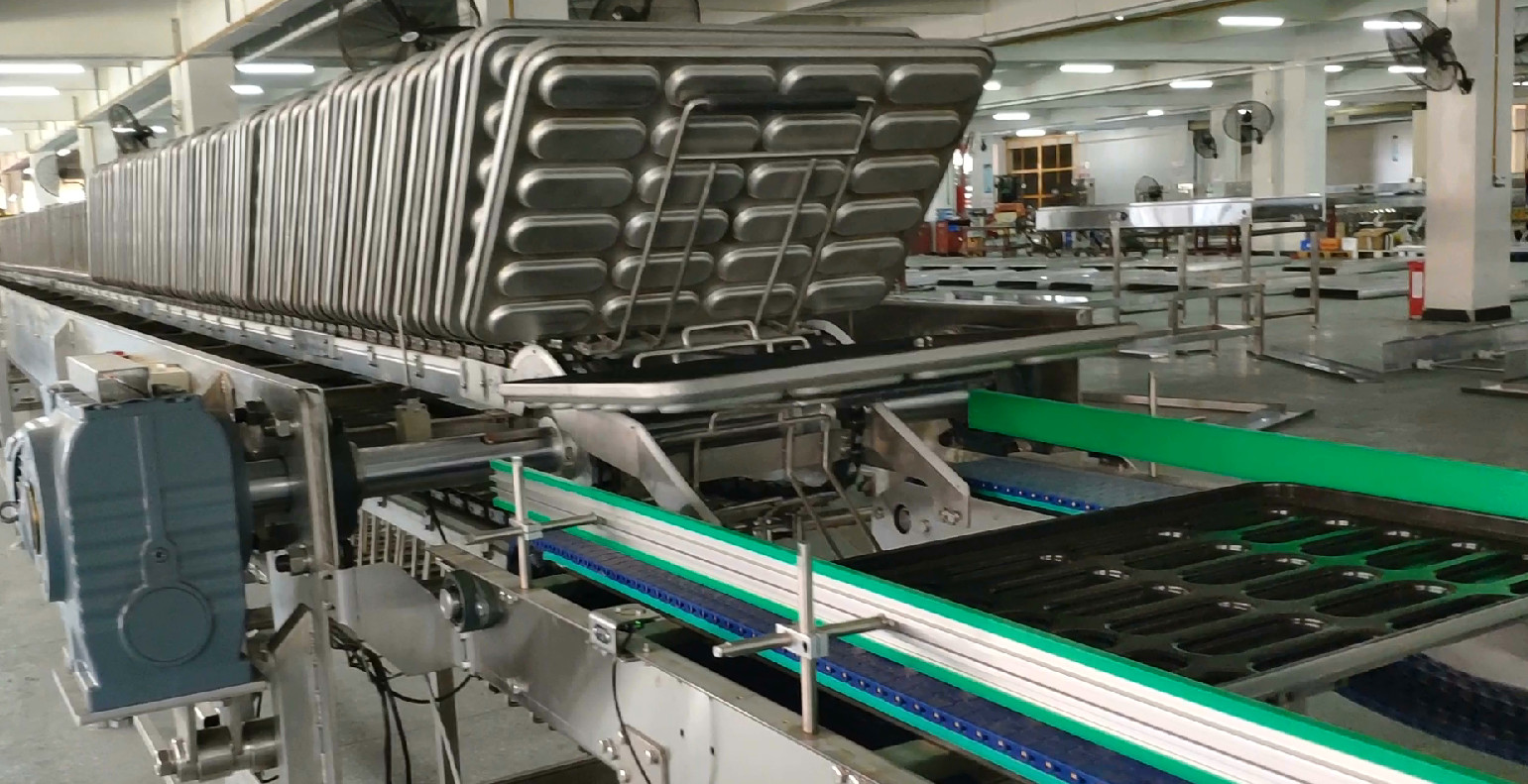

Edge pan cooler

SUS304 Automatic Bread Production Line 4

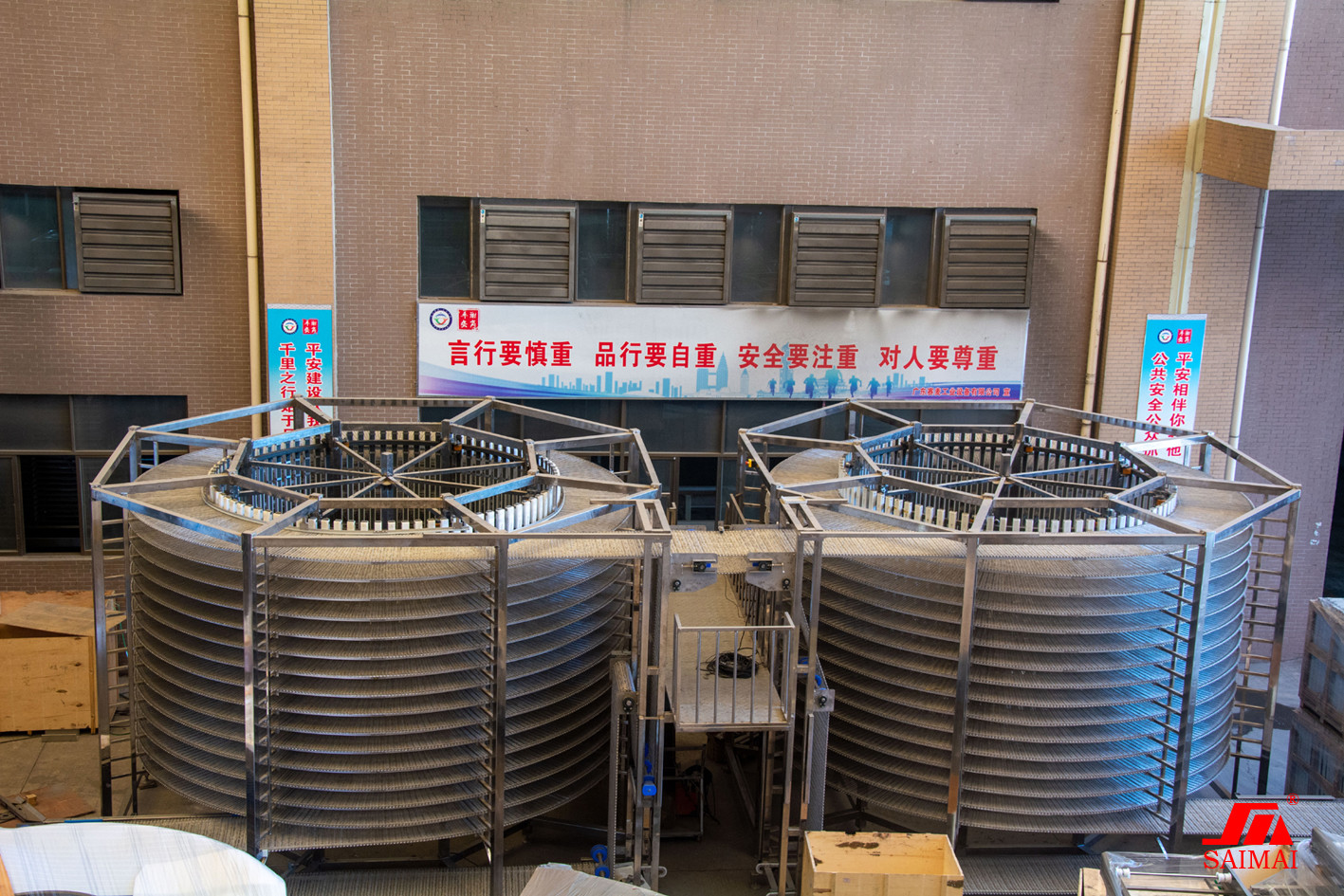

Spiral Cooling Tower

Our spiral cooling tower is suitable for the food industry, light industry, and the optimal conveying equipment during the automatic continuous production. It is widely used in food cooling, conveying, and so on

Features:

1. It can be customized to meet customer requirements and designed to be the most suitable size and structure for your product.

2. Reliably and practicability: It is in accord with ergonomics and durability.

3. Using SEW drive and SIEMENS DEIVE to ensure the stability of the equipment.

4. Strict food safety standard: Smooth and clean surface, opening design and stainless structure make it easy to be cleaned.

5. Its advantages as below: beautiful shape and good quality; transmit steadily and smoothly with low voice; easy operation and low maintenance cost.

6.Optional for the cleaning system, the cleaning system has circulating hot water, steam cleaning, residue removing, and strong wind function.

SUS304 Automatic Bread Production Line 5



Conveyors

1. PLC systems can monitor faults and showing alarm information in  English according to the customer’s requirement. It has an open communication interface for the internet and is free to connect with other controlled systems and computer systems.

2. Incorporated the design of Europe and Japan into our equipment. Maximum reduce the cost of labor and realize real automation.

3. According to the workshop area and the requirement of manufacturing to perfectly design the size and structure.

SUS304 Automatic Bread Production Line 6

our owrkshop:

SUS304 Automatic Bread Production Line 7

Packaging and delivery:

SUS304 Automatic Bread Production Line 8
