1500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven

Place of Origin China
Brand Name SAIMAI
Certification CE
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Container/ Plastic Film Wrapping/Wood Frame
Delivery Time 90days
Payment Terms L/C, T/T
Supply Ability 10 Set/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Condition New
Warranty 1 Year Capacity Customized
Advantages High Efficent,high Output,Less Waste Automatic Grade Fully-automatic
Conveyor Steel Strip Temperature Range Room Temperature~350
Energy Gas Electric
High Light

Carbon Steel Band Conveyor Tunnel Oven

,

1500kg/M Bakery Tunnel Oven

,

1500kg Gas Tunnel Oven

Leave a Message
Product Description

High Efficiency Commercial Tunnel Baking Machine Line Tunnel Oven with Steel Strip



Equipment name

Proportiaonal controlled gas heated tunnel oven



Cyclothermal tunnel oven Electrical heated tunnel oven Hybird Gas Oven tunnel oven
Length*Width*Height varies by capacity varies by capacity varies by capacity varies by capacity
Weight 700kg-1500kg/m 700kg-1500kg/m 700kg-1500kg/m 700kg-1500kg/m
Technology Proportional gas and air complete mixed combustion Built in circulating heated air system Heating control system form Japan Flame combustion + Thermal circulation air
Fuel Natural gas/LPG Natural gas/LPG Electricity Natural gas/LPG
Voltage(V) 380V 380V 380V 380V
Internal temperature

200-400degrees



200-400degrees



200-400degrees



200-400degrees



Transport palette Slat band/Steel band/ Mesh Belt conveyor Slat band/Steel band/ Mesh Belt conveyor Slat band/Steel band/ Mesh Belt conveyor Slat band/Steel band/ Mesh Belt conveyor
Motor ABB ABB ABB ABB
Warranty 1 year(Except user errors) 1 year(Except user errors) 1 year(Except user errors) 1 year(Except user errors)





Tunnel oven introduction:



1. Baking chamber divided in up to 1 zone every 2000 mm with dedicated burner for independent temperature setting. Heat adjustments for bottom and top of baking chamber



2. Based on your recipes and raw materials, we will work out the best solution for you until you are fully happy with our suggestion. If necessary, we adjust the units again and start the entire customisation process over again.



3. The direct gas fired oven has a simple baking chamber of box section with the oven band supported through the middle of the chamber. Above and below the band are ribbon gas burners. A gas/air mixture is supplied to the burner tubes and this is ignited by a spark electrode and burns on a strip or ribbon across the width of the oven conveyor band

The heat transfer in a direct gas fired oven is primarily by radiation from the gas flames and from the oven top, base and walls of the baking chamber.

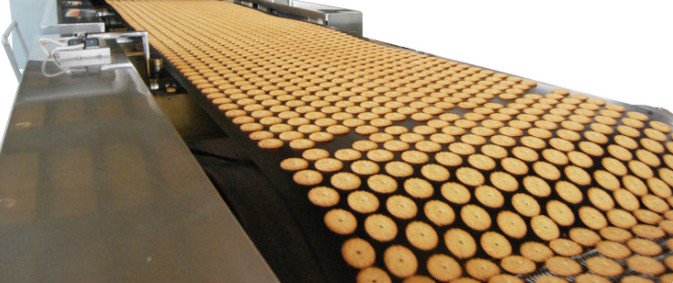

1500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 0



The conveyor band material is a wire-mesh or a carbon steel band, which turns around large cylindrical drums at each end of the tunnel oven. The conveyor is driven by a variable speed drive at the tunnel oven end which allows the operator to adjust the baking time.

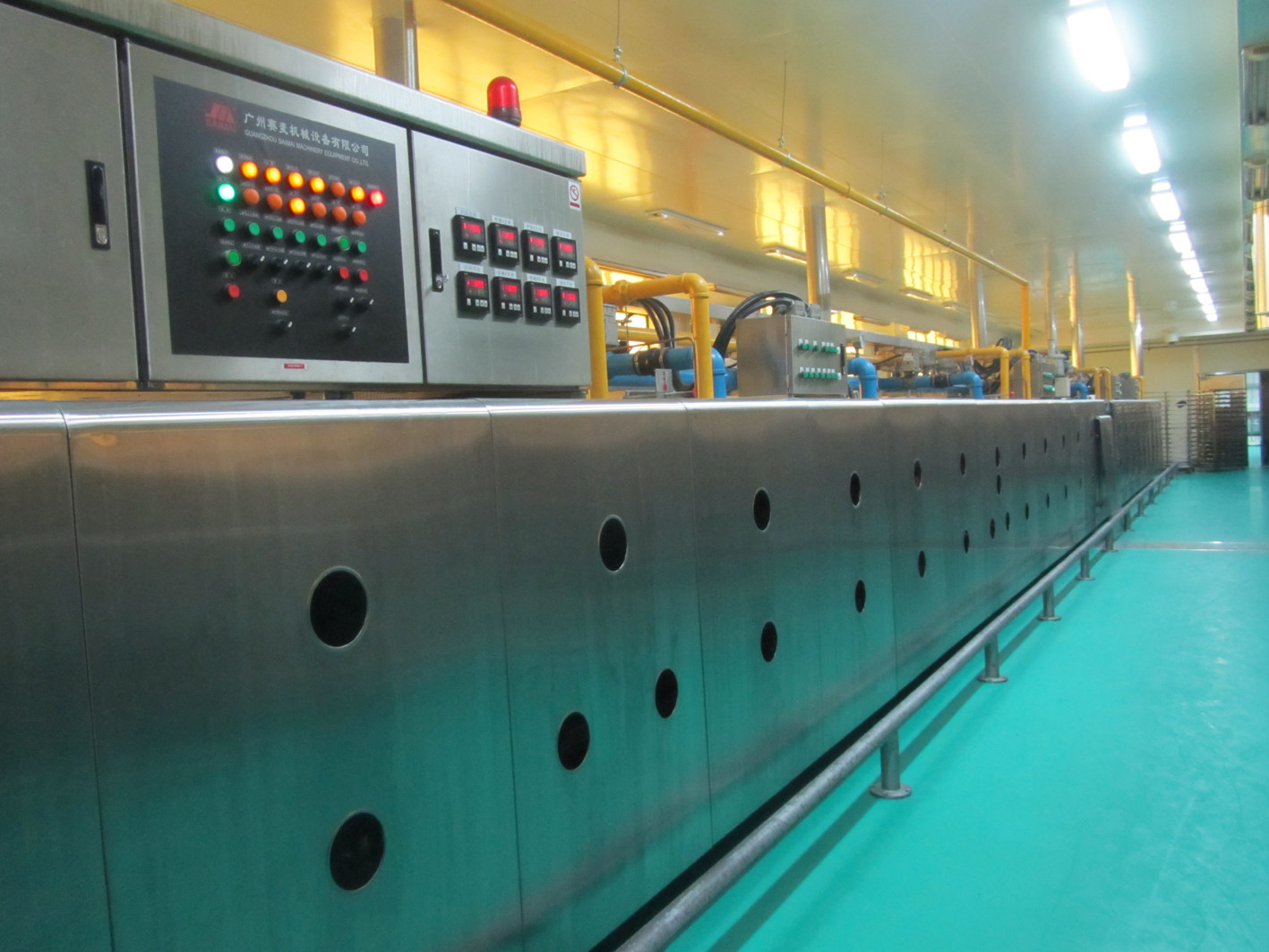

1500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 1



The baking process is a key step to achieve the final color, texture and taste of every type of bakery product.

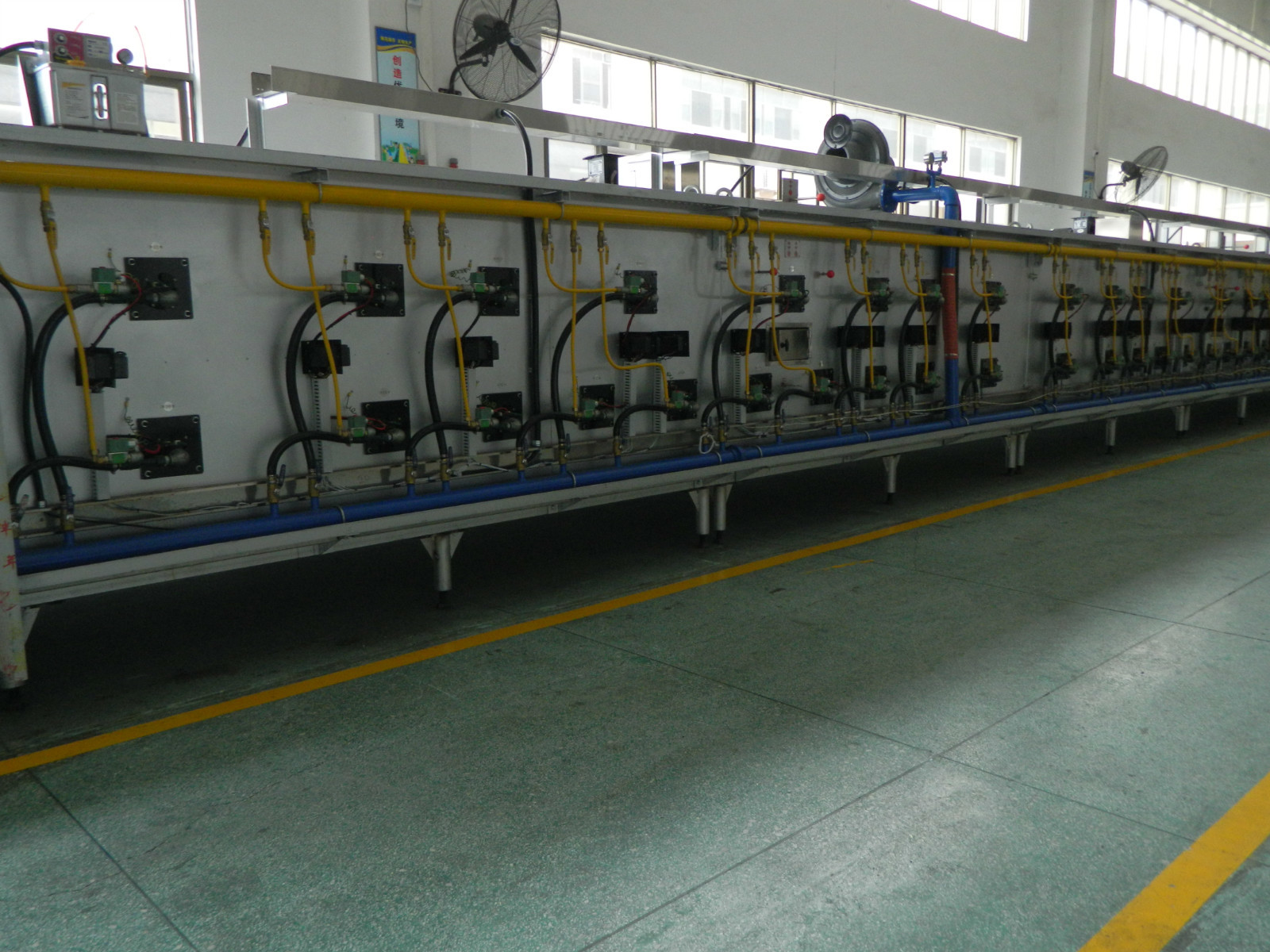

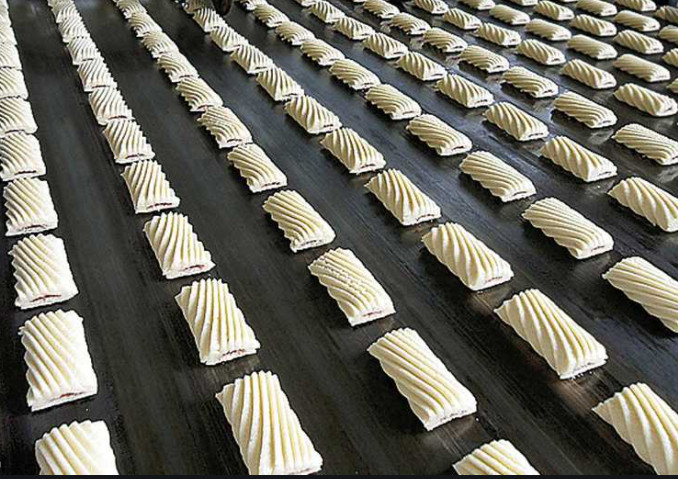

1500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 21500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 3



The baking chamber may be heated directly with gas burners or electric heaters or by an indirect system using heat exchangers. Direct heating systems use gas or electric energy, indirect systems may also use diesel oil fuel as the products of combustion do not enter the baking chamber.

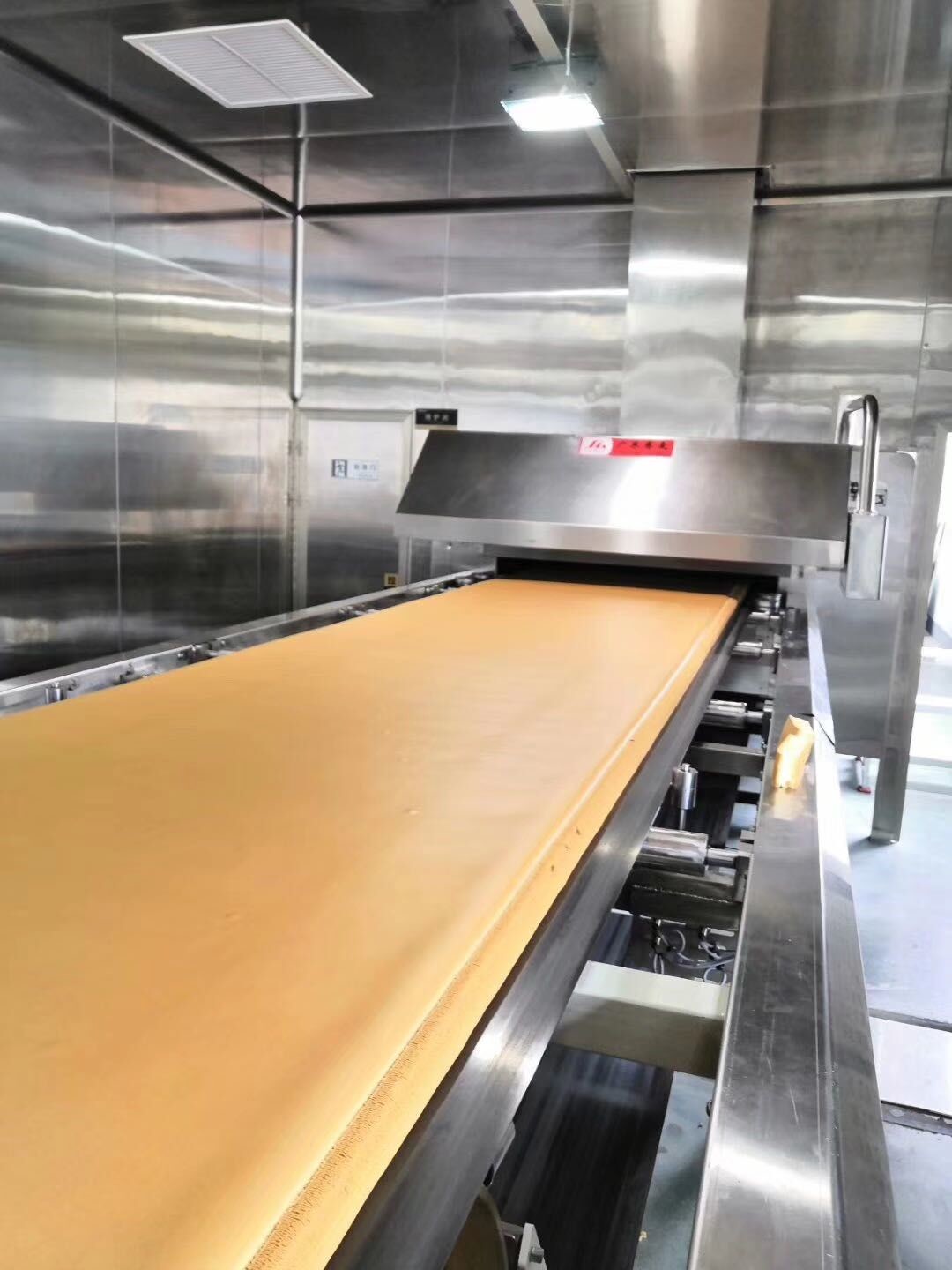

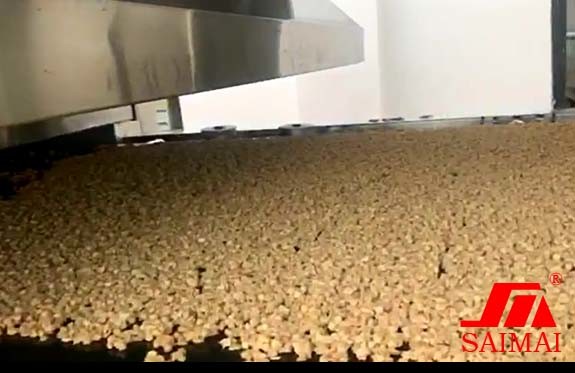

1500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 41500kg/M Carbon Steel Band Conveyor LPG Gas Tunnel Oven 5
