CE SUS304 Semi Automatic Sponge Cupcake Production Line

Place of Origin China
Brand Name GUANGDONG SAIMAI
Certification ISO,CE
Model Number CUSTOMIZED
Minimum Order Quantity 1
Price Price negotiation
Packaging Details Standard Wooden case, Packing film
Delivery Time 90days
Payment Terms L/C, T/T
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Guangdong, China Warranty 1 YEAR
Power Source Electric/Gas Type Full Automatic
After-sales Service Provided Field Installation, Commissioning ,training Maintenance And Repair Service Key Words Sponge Cake Cup Cake Making Machine
Suitable For Bakery Factory Material 304 Stainless Steel
Motor ABB/Siemens/Sew Supply Ability 8 Set/Per Month
Color Silver
High Light

CE SUS304 Cupcake Production Line

,

SUS304 cupcake production line

,

SUS304 Semi Automatic Cupcake Production Line

Leave a Message
Product Description

Semi -Automatic or FULL-Automatic Cake Production Line Make for Bakery Factory



Whether you want to make any kinds of cakes, such as cupcakes and muffins, filled cake, or decorated cakes, cake Rusk, SAIMAI can offer industry-leading equipment, production lines and turnkey plants.

SAIMAI has spent more than 20 years working with medium- and large-scale industrial-scale customers in China and Southeast Asia to improve and develop technology that can be tailored to different processing requirements such as cake size, shape and cake type.

From aeration mixer and depositors to tunnel ovens, injecting machines, depanners and packaging lines, the up- to –date technology from SAIMAI can handle any batter mixture, and final product, which can reduce labor and increase output and automation.

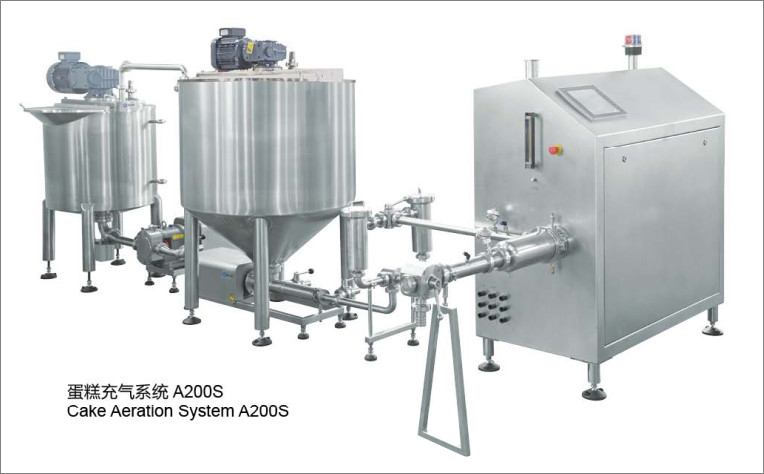

Continuous aeration mixer

Aeration is critical to cakes. Developed in the mixer, air bubbles in the batter provide much of the cake’s structure and volume. Aeration impacts a cake’s ability to rise in the pan.

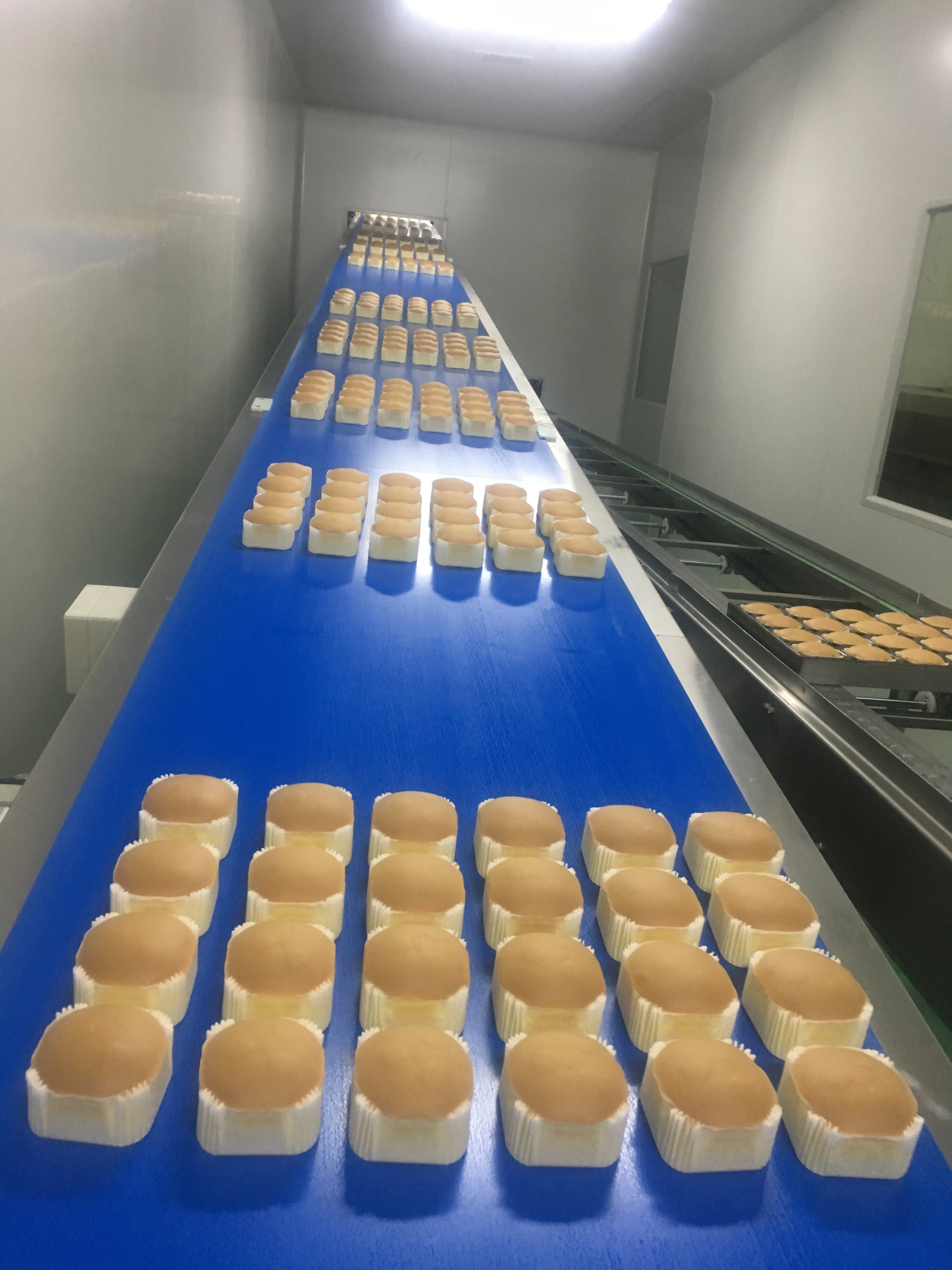

CE SUS304 Semi Automatic Sponge Cupcake Production Line 0

Papercup dispenser

1. paper cup dispenser is designed especially for cakes

2. Running speed of paper cup dispener: 1-2 rows/ time, 25 cycles/min

3. Main frame in stainless steel, with height adjusting legs

4. Motorization made up of 1 motor for the rotating movements, the conveyor width of the paper cup dispenser is 850mm

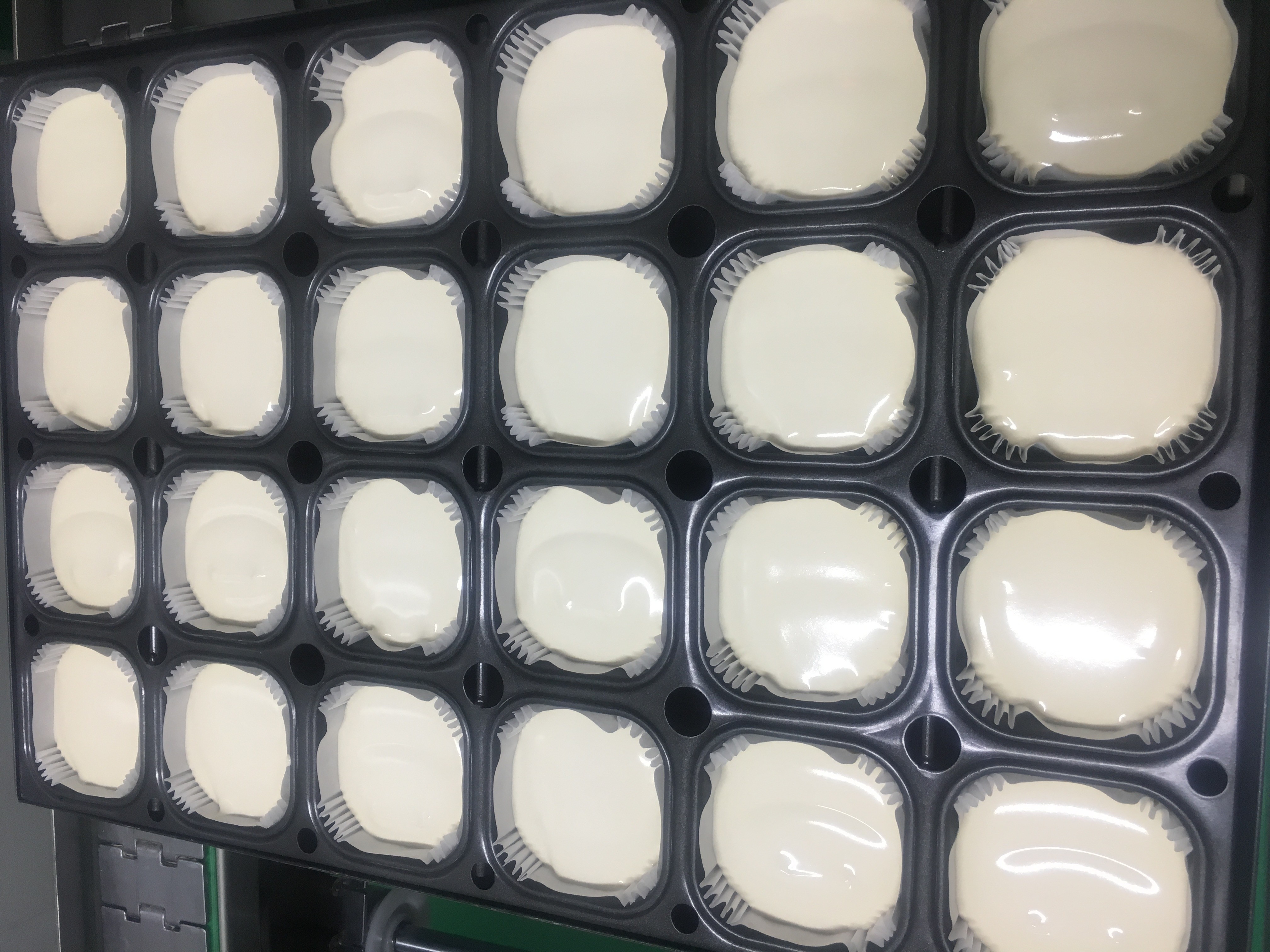

CE SUS304 Semi Automatic Sponge Cupcake Production Line 1

DEPOSITOR

1. Electrically controlled by PLC for semi-liquid fillings.

2 .This depositors include nozzles which is changeable in the width mounted on a bridge.

3. Standard range of volume is adjustable on the screen from 15 to 130 cc.

4. The capacity is adjustable up to 20-25strokes p/min. depending on the used materials and volume.

5. The operation in full synchronisation to the empty tray conveyor when the detector gets the tray arrival information.

6. The total depositor is built onto a fixed frame which is made of stainless steel and non corrosive materials.

7. The motor and reducer is mounted in the cabinet which is stand beside of the conveyor.

8 .The PLC with the touch screen is mounted on the top of the cabinet for easy operates

CE SUS304 Semi Automatic Sponge Cupcake Production Line 2

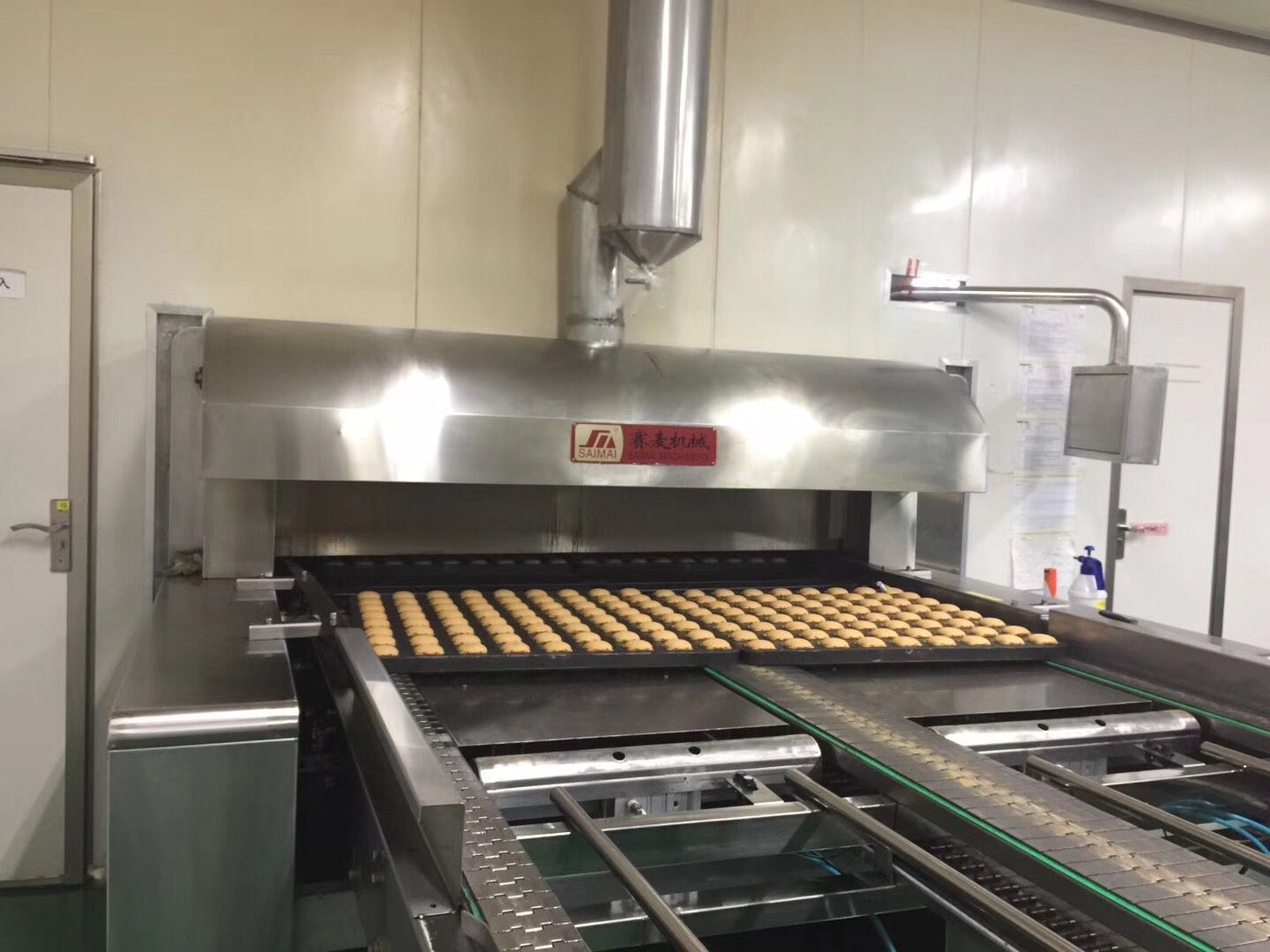

TUNNEL OVEN:

1: The oven is constructed gas-tight baking tunnel, divided into 2m/ section. Each section is connected on a frame, with a gas-tight connection between the sections.

2: the baking tunnel are insulated with 20CM-25CM layer of high-quality insulation material, in order to reduce heat loss to a minimum.

3. Inspection door on the control side

4. Stainless steel side and top outside panel.

5. The temperature is measured in each zone, both temperature underneath and above the product to be baked. PT-100 sensors are fitted in the baking tunnel for this purpose. The measured values for each zone can be read both on the central control panel (touch panel) and moisture instrument.

6. In the event of a driving motor failure, the belt can be driven by the hand device. Which could send the product out of the oven.

7. OMRON PLC system is built into the control cabinet for the control of the oven.

CE SUS304 Semi Automatic Sponge Cupcake Production Line 3

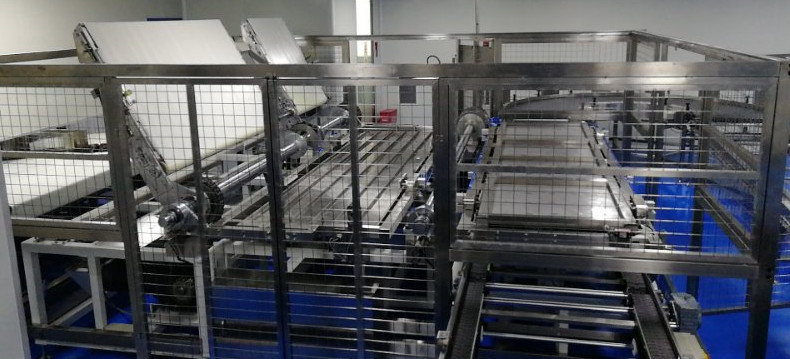

SUCTION DEPANNER /NEEDLE DEPANNER/FLIP-OVER DEPANNER

1. The depanner works according to the vacuum -principle. This vacuum is obtained by a high-pressure fan which is equipped with a silencer. The depanner is installed in the baking tray conveyor system. Depending on the capacity, products of more baking trays are taken at the same time.

2. The products are taken by sucking-cups of silicone rubber. These sucking-cups are installed on an exchangeable plate which is a part of the vacuum chamber of the depanner. The vacuum chamber is pneumatically vertically moved during the picking and the placing of the products. The horizontal movement of the vacuum chamber is done by a frequency-controlled drive.

CE SUS304 Semi Automatic Sponge Cupcake Production Line 4

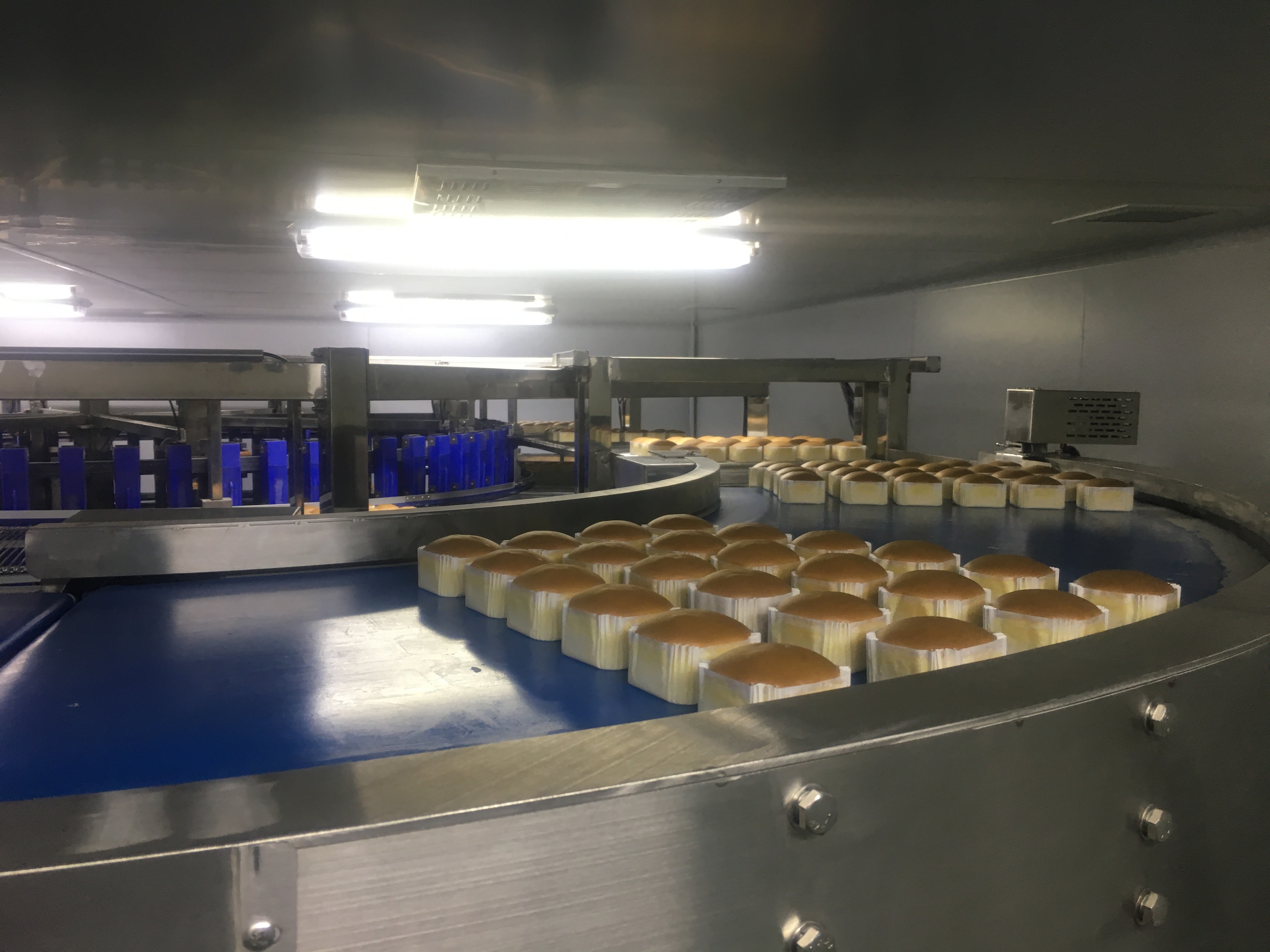

Spiral Cooling Tower

Our spiral cooling tower is suitable for the food industry, light industry, and the optimal conveying equipment during the automatic continuous production. It is widely used in food cooling, conveying, and so on.

Features:

1. It can be customized to meet customer requirements and designed to be the most suitable size and structure for your product.

2. Reliably and practicability: It is in accord with ergonomics and durability.

3. Using SEW drive and SIEMENS DEIVE to ensure the stability of the equipment.

4. Strict food safety standard: Smooth and clean surface, opening design and stainless structure make it easy to be cleaned.

5. Its advantages as below: beautiful shape and good quality; transmit steadily and smoothly with low voice; easy operation and low maintenance cost.

6.Optional for the cleaning system, the cleaning system has circulating hot water, steam cleaning, residue removing, and strong wind function.

CE SUS304 Semi Automatic Sponge Cupcake Production Line 5



FAQ:

Q1: Are you a factory or trading company?

A1: We are a factory. GuangDong SaiMai Industrial Equipment co.,LTD is located in GuangDong Province, China.

Q2: Can I customize the produces' size?

A2: Yes, We provide professionally customize to meet the needs of your company

Q3: How does your factory control the quality?

A3:Our Aims: Maintain High Quality, Keep Improving, Provide the Best Service, Be Client-Oriented
      Our Goal: To be the top bakery equipment manufacturer in the world





OUR WORKSHOP

CE SUS304 Semi Automatic Sponge Cupcake Production Line 6



PACKING & DELIVERY

CE SUS304 Semi Automatic Sponge Cupcake Production Line 7
