Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line

Place of Origin China
Brand Name Saimai
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case, Wooden pallet
Delivery Time 90days
Payment Terms T/T, L/C
Supply Ability 5Set/90-120 working days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Customized Automatic Grade Automatic,Fully-automatic
Certification CE ISO Capacity Customized
Warranty 1 Year Condition New
After-sales Service Provided Engineers Available To Service Machinery Overseas
High Light

ultrasonic slicer Bread Production Line

,

Sandwich Bread Rusk Production Line

,

Hygiene Rusk Production Line

Leave a Message
Product Description

Production Line Bakery Machines Of Bread Toast Sandwich Bread Bread Rusk Production Line



A range of unit machines combined with the process knowledge and engineering expertise to integrate them into reliable and flexible high-output systems, SAIMAI can provide equipment for bread, such as toast bread, sliced sandwich bread, hamburger bun, hotdog roll, and soft bread and so on. Each machine is specified to match the customer’s product and output needs.

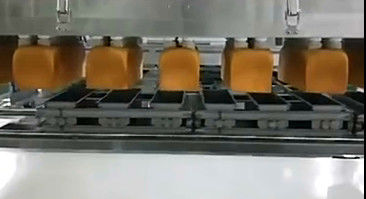

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 0

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 1

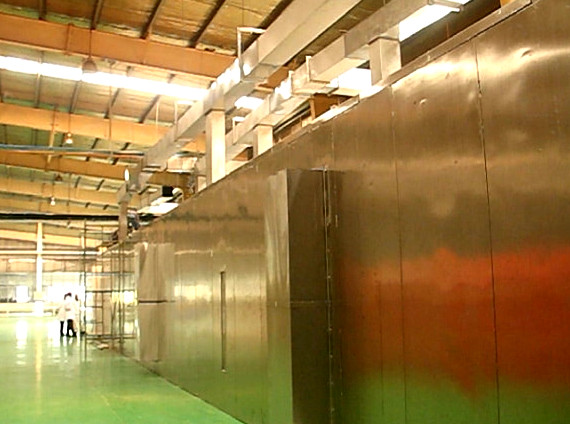

Make-up Line

Cooperate with the best Forming equipment manufacturer in China to ensure produce the best baking products for customers

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 2

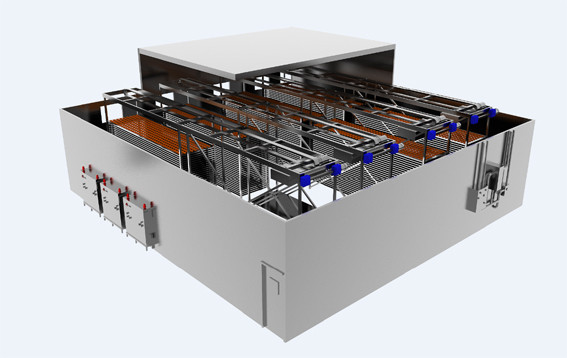

Automatic Proofing system

Pans, trays can all be handled by the proofing room. Different tray types can be used as long as their outer dimensions are equal. The proofing room has several racks that consist of one or more levels, making the proofing time and capacity flexible without increasing the floor space.

The pans are fed into the proofer by conveyor and do not touch each other. Once a row is filled, it is lifted with an L-shape carrier. This process is repeated until the first dough has reached the top level. Then, the pans are moved out of the proofing room.

The proofing room is accommodated with a temperature and humidity control system and insulated housing.

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 3

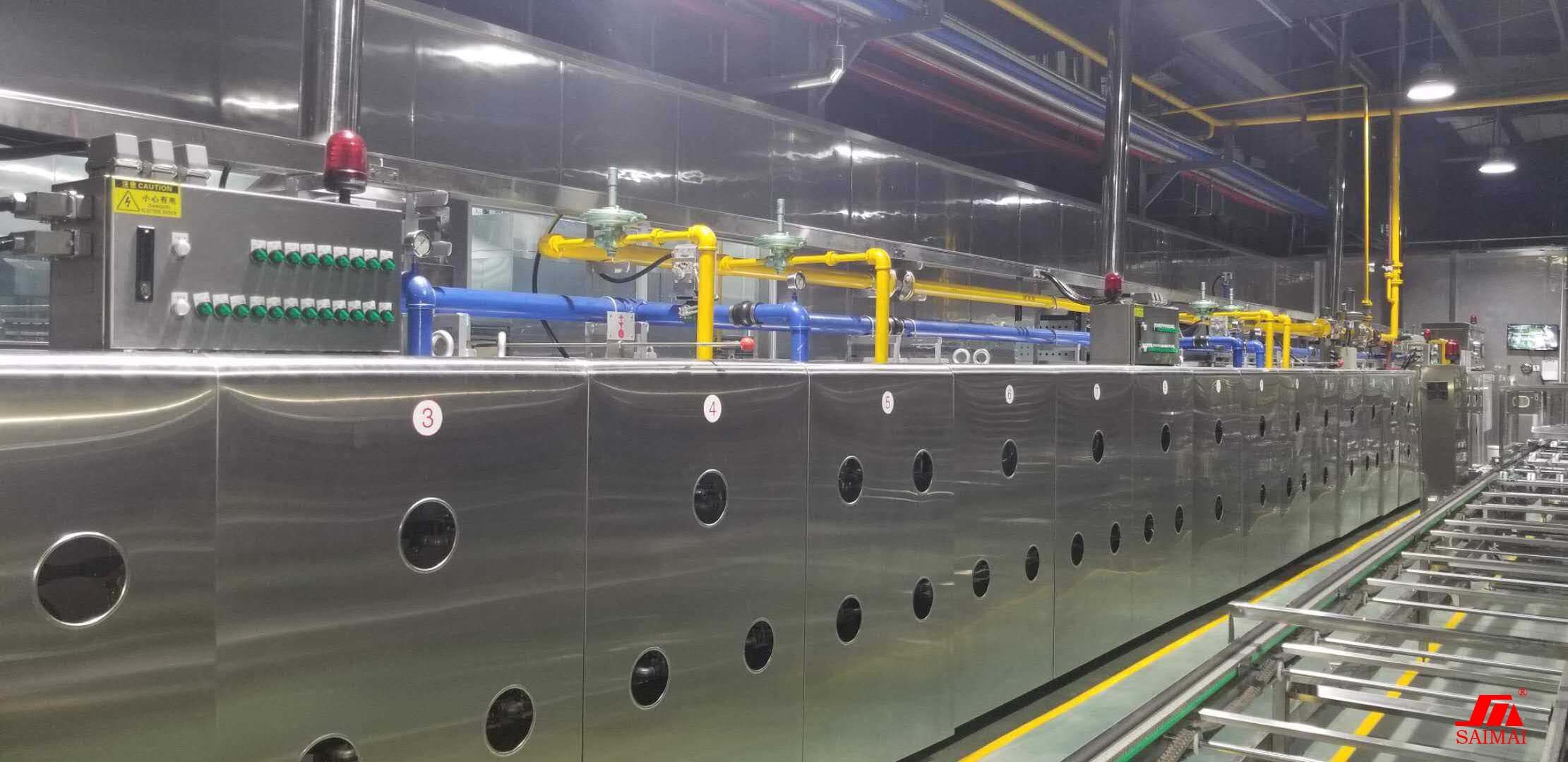

TUNNEL OVEN:

1: The oven is constructed gas-tight baking tunnel, divided into 2m/ section. Each section is connected on a frame, with a gas-tight connection between the sections.

2: the baking tunnel are insulated with 20CM-25CM layer of high-quality insulation material, in order to reduce heat loss to a minimum.



3.. Inspection door on the control side

4. Stainless steel side and top outside panel.

5. The temperature is measured in each zone, both temperature underneath and above the product to be baked. PT-100 sensors are fitted in the baking tunnel for this purpose. The measured values for each zone can be read both on the central control panel (touch panel) and moisture instrument.

6. In the event of a driving motor failure, the belt can be driven by the hand device. Which could send the product out of the oven.

7. OMRON PLC system is built into the control cabinet for the control of the oven.



Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 4

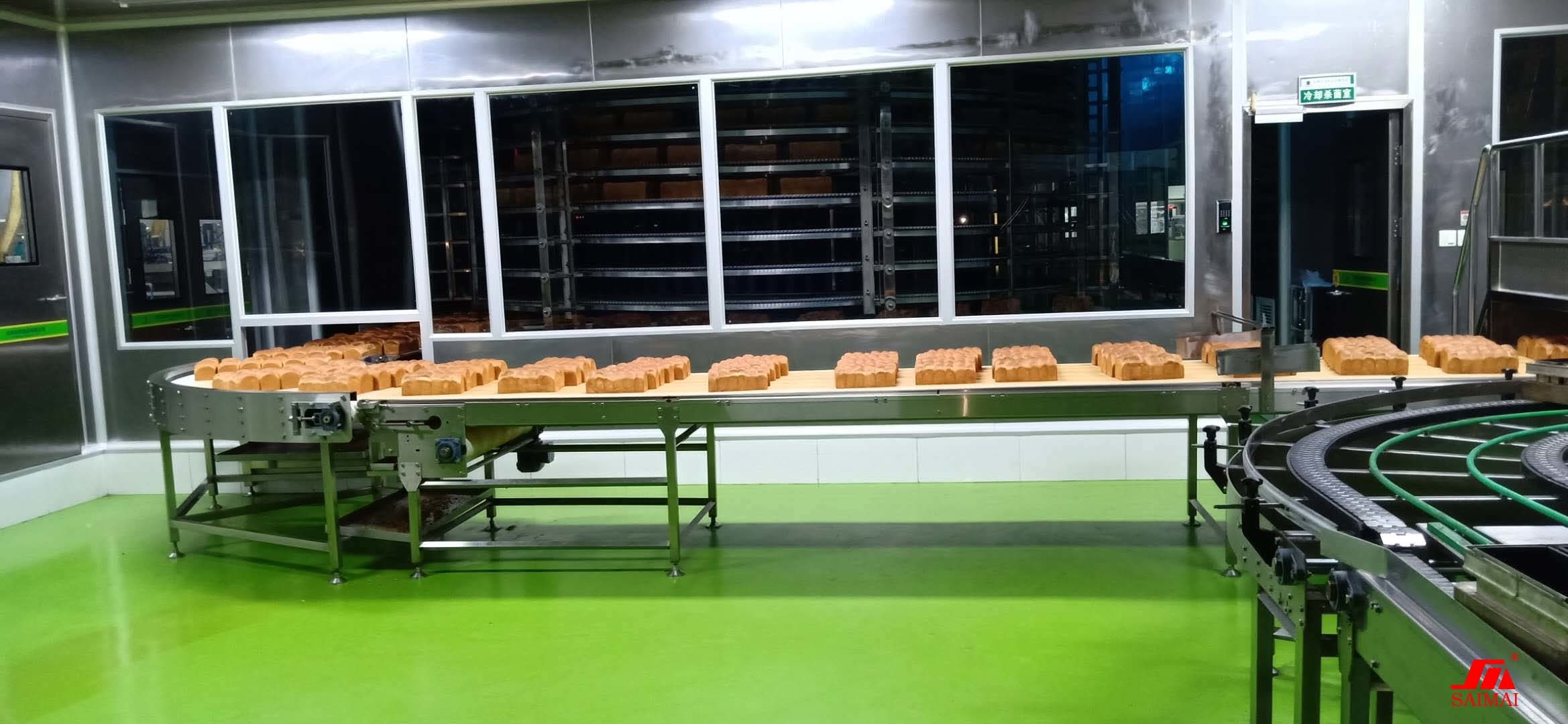

Flip over Depanner

1. Support structure in A3 plate on floor-standing height adjustable legs.

2 .Independent electric and control panel.

3. The overturning depanning plate take the tray over turn two times,then put the tray back on the return conveyor, and the cakes are caught by overturning PU belt. The belt is high- temperature resistance PU belt with white color.



Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 5

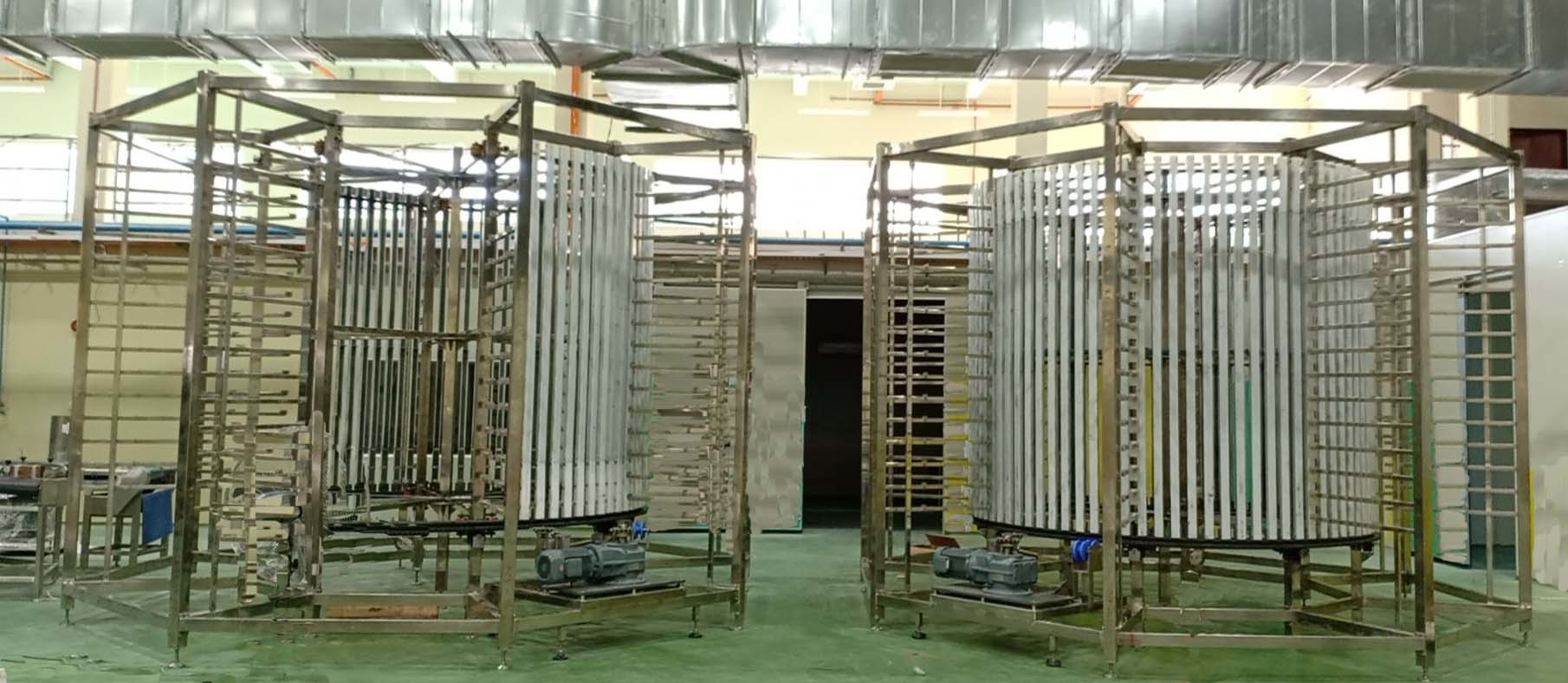

Spiral Cooling Tower

Features:

1. It can be customized to meet customer requirements and designed to be the most suitable size and structure for your product.

2. Reliably and practicability: It is in accord with ergonomics and durability.

3. Using SEW drive and SIEMENS DEIVE to ensure the stability of the equipment.

4. Strict food safety standard: Smooth and clean surface, opening design and stainless structure make it easy to be cleaned.

5. Its advantages as below: beautiful shape and good quality; transmit steadily and smoothly with low voice; easy operation and low maintenance cost.

6.Optional for the cleaning system, the cleaning system has circulating hot water, steam cleaning, residue removing, and strong wind function.

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 6

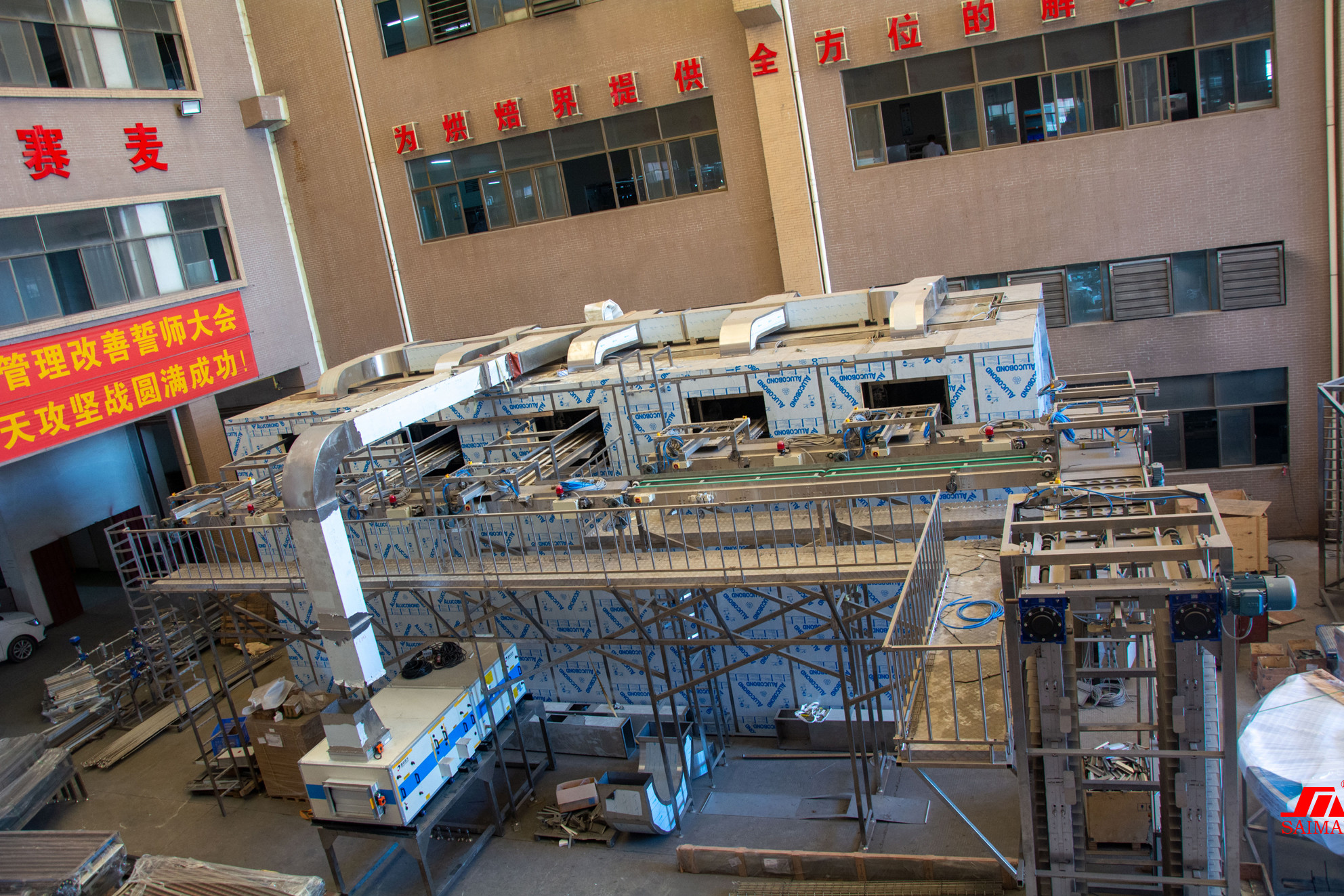

Conveyors

1. PLC systems can monitor faults and showing alarm information in Mandarin and English according to the customer’s requirement. It has an open communication interface for the internet and is free to connect with other controlled systems and computer systems.

2. Incorporated the design of Europe and Japan into our equipment. Maximum reduce the cost of labor and realize real automation.

3. According to the workshop area and the requirement of manufacturing to perfectly design the size and structure.

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 7

Hygiene Ultrasonic Slicer Sandwich Bread Rusk Production Line 8
