CE Needle Depanner Sourdough Bread Production Equipment

Place of Origin China
Brand Name Saimai
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Container/ Plastic Film Wrapping/Wood Frame
Delivery Time 90days
Payment Terms L/C, T/T
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Condition New
Warranty 1 Year Capacity Customized
Advantages High Efficent,high Output,Less Waste Automatic Grade Fully-automatic
High Light

CE Sourdough Bread Production Line

,

Needle Depanner Bread Production Line

,

Sourdough Bread Production Equipment

Leave a Message
Product Description

Automatic bread production line Sourdough Bread Production Line



This is a custom-made turnkey project designed for making various types of bread. SAIMAI can supply a complete line for baking bread including full range of processes – from taking dough from divider up to receiving the final product from the oven outfeed. Equipment includes an automatic tray-carrier proofer, oven, conveying and depanner.

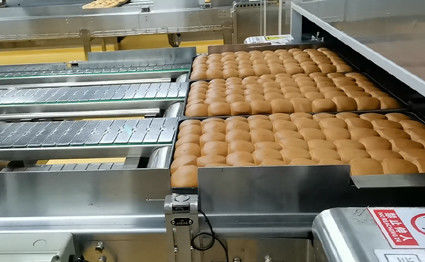

Make-up Line

Cooperate with the best Forming equipment manufacturer in China to ensure produce the best baking products for customers



CE Needle Depanner Sourdough Bread Production Equipment 0

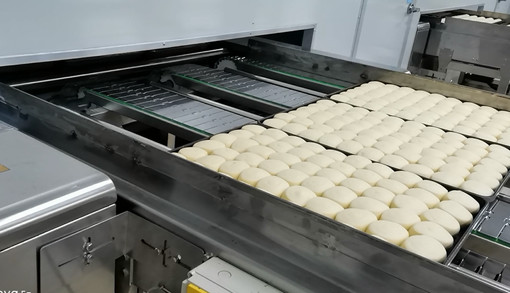

Automatic or semi-automatic Proofing Room

Pans, trays can all be handled by the proofing room. Different tray types can be used as long as their outer dimensions are equal. The proofing room has several racks that consist of one or more levels, making the proofing time and capacity flexible without increasing the floor space.

The pans are fed into the proofer by conveyor and do not touch each other. Once a row is filled, it is lifted with an L-shape carrier. This process is repeated until the first dough has reached the top level. Then, the pans are moved out of the proofing room.

The proofing room is accommodated with a temperature and humidity control system and insulated housing.

CE Needle Depanner Sourdough Bread Production Equipment 1

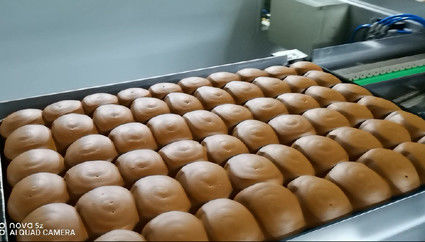

Tunnel Oven

1: The oven is constructed gas-tight baking tunnel, divided into 2m/ section. Each section is connected on a frame, with a gas-tight connection between the sections.

2: the baking tunnel is insulated with 20CM-25CM layer of high-quality insulation material, in order to reduce heat loss to a minimum.

3. Inspection door on the control side

4. Stainless steel side and top outside panel.

5. The temperature is measured in each zone, both temperature underneath and above the product to be baked. PT-100 sensors are fitted in the baking tunnel for this purpose. The measured values for each zone can be read both on the central control panel (touch panel) and moisture instrument.

6. In the event of a driving motor failure, the belt can be driven by the hand device. This could send the product out of the oven.

7. OMRON PLC system is built into the control cabinet for the control of the oven.

CE Needle Depanner Sourdough Bread Production Equipment 2

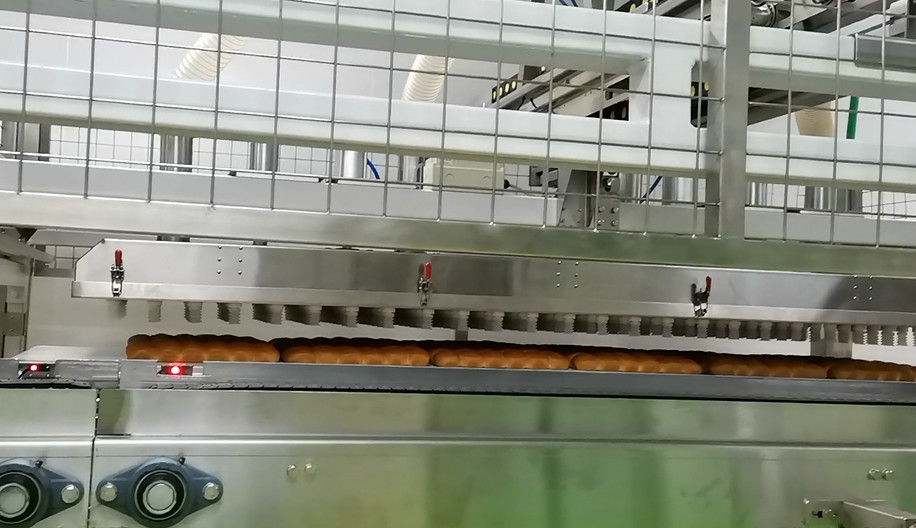

Suction Depanner/ Needle Depanner

By means of a pick-and-place principle, a depanning head is positioned above pans; the (exchangeable) depanning head picks up the product and then transfers it to the cooling conveyor and releases it.

CE Needle Depanner Sourdough Bread Production Equipment 3

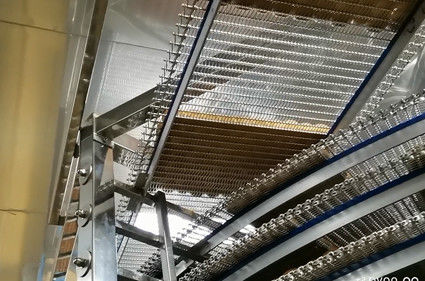

Spiral Cooling Tower

Our spiral cooling tower is suitable for the food industry, light industry, and the optimal conveying equipment during the automatic continuous production. It is widely used in food cooling, conveying, and so on.

Features:

1. It can be customized to meet customer requirements and designed to be the most suitable size and structure for your product.

2. Reliably and practicability: It is in accord with ergonomics and durability.

3. Using SEW drive and SIEMENS DEIVE to ensure the stability of the equipment.

4. Strict food safety standard: Smooth and clean surface, opening design and stainless structure make it easy to be cleaned.

5. Its advantages as below: beautiful shape and good quality; transmit steadily and smoothly with low voice; easy operation and low maintenance cost.

6.Optional for the cleaning system, the cleaning system has circulating hot water, steam cleaning, residue removing, and strong wind function.

CE Needle Depanner Sourdough Bread Production Equipment 4

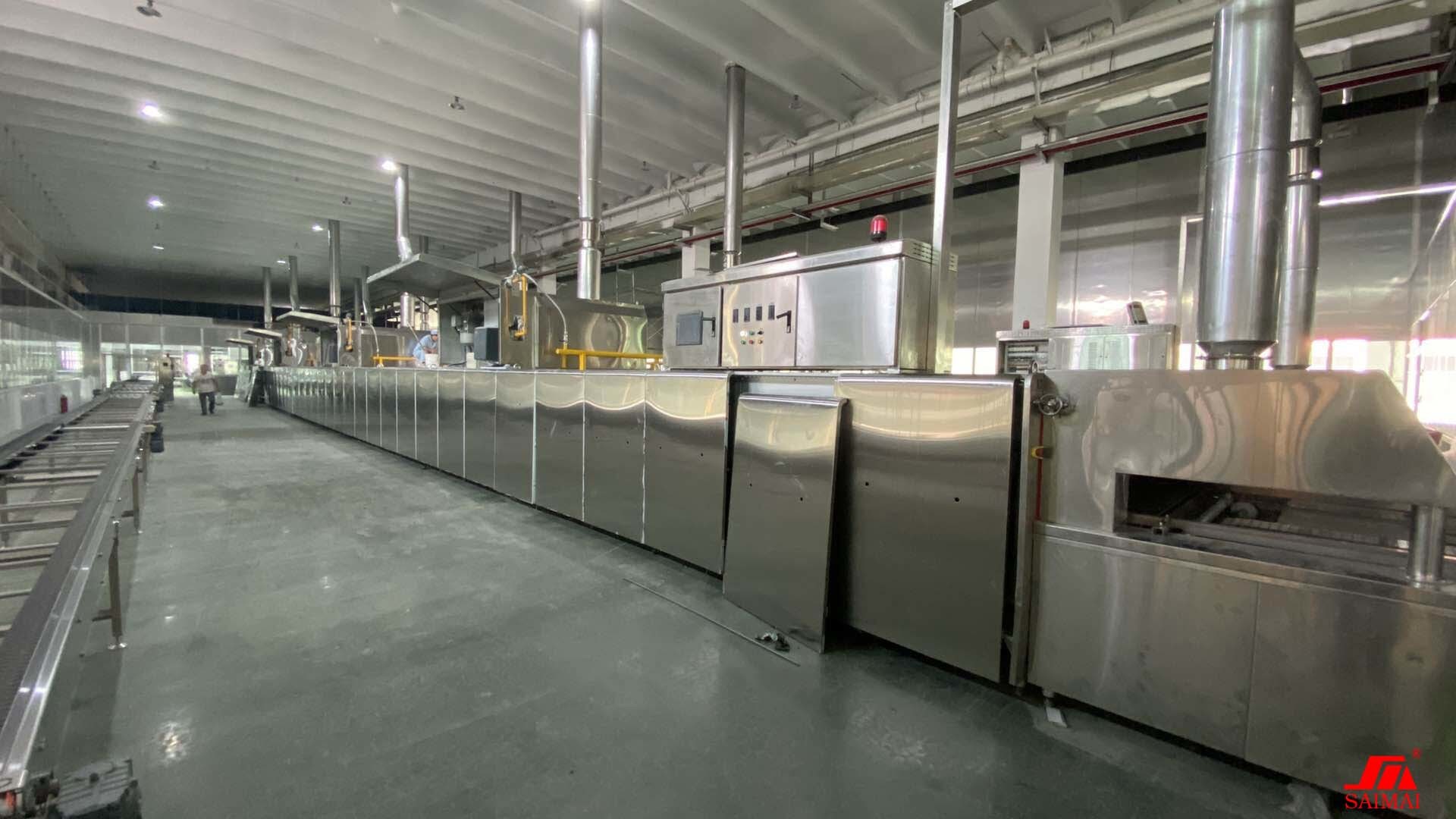

our workshop:

CE Needle Depanner Sourdough Bread Production Equipment 5
