Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System

Place of Origin China
Brand Name SAIMAI
Certification CE Certificate, ISO 9000 Certificate
Model Number Customized
Minimum Order Quantity 1
Price Negotiable
Packaging Details Container/ Plastic Film Wrapping/Wood Frame
Delivery Time 90days
Payment Terms L/C, T/T
Supply Ability 5Set/90-120 Working Days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fully Automatic Bread Production Line Condition New
Warranty 1 Year Capacity Customized
Advantages High Output,Less Waste Automatic Grade Fully-automatic
High Light

Suction Depanner Bread Production Line

,

PLC System Bread Production Line

,

Step Proofer Automatic Bread Production Line

Leave a Message
Product Description

China Bread Making Machine Fully Automated Bakery Production Line Manufacturer



Saimai can make bread lines in a wide variety of shapes and tastes, Flexible combined line for manufacturing toast bread, milk rolls, filled bun etc.
The bread is normally made from dough that enriched with sugar and butter and sometimes even egg. After make-up line, the dough are panning into different kinds of pans, including flat top pan of pans trays with moulds, the pans are transported into automatic final proofing room, after final proofing, the dough pieces can be decorated before baking, some kinds of baking oven can be chosen, the air/gas proportional controlled direct heated tunnel oven or air circulation type indirect heated tunnel oven, the baked products are cooled by spiral cooler, the empty pans return through the pan cooling tunnel to the dough positioning and panning machine. And enter into next cycle.









We also can customize our production lines to match the factory layout and design of our clients’ existing plants.

The line can be equipped with:

Make-up line

Automatic Step-proofer

Automatic Trolley Loader (optional)

Automatic Trolley Un- Loader (optional)

Topping machine

Tunnel Oven

Suction Depanner/ Needle Depanner

Pan cleaning machine

Multi-step pan cooler

Pan buffer

Spiral Cooler

Sling & finning machine ( Optional)

Packaging machines



Make-up Line

Cooperate with the best Forming equipment manufacturer in China to ensure produce the best baking products for customers

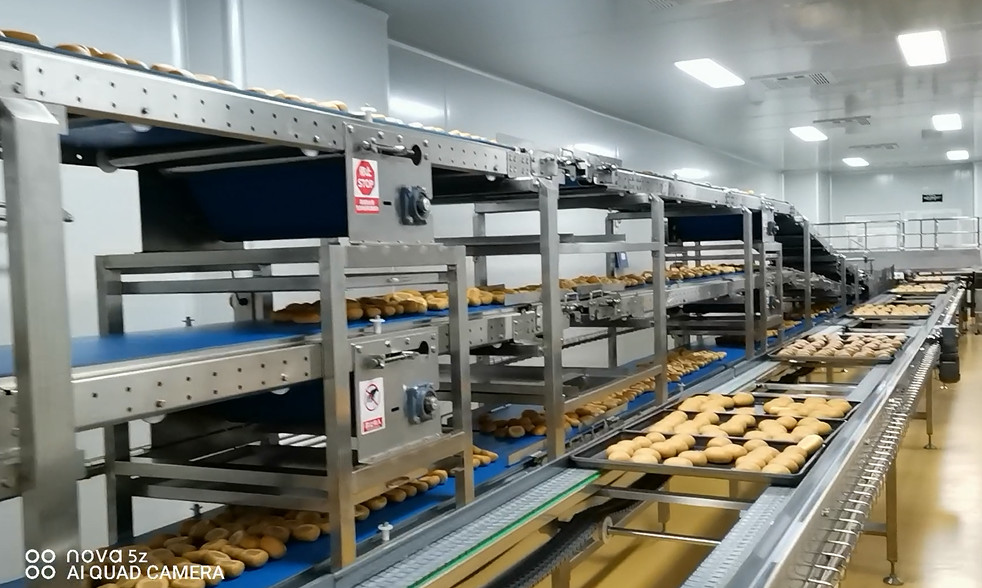

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 0

Proofing Room

Pans, trays can all be handled by the proofing room. Different tray types can be used as long as their outer dimensions are equal. The proofing room has several racks that consist of one or more levels, making the proofing time and capacity flexible without increasing the floor space.

The pans are fed into the proofer by conveyor and do not touch each other. Once a row is filled, it is lifted with an L-shape carrier. This process is repeated until the first dough has reached the top level. Then, the pans are moved out of the proofing room.

The proofing room is accommodated with a temperature and humidity control system and insulated housing.

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 1



Tunnel Oven

1: The oven is constructed gas-tight baking tunnel, divided into 2m/ section. Each section is connected on a frame, with a gas-tight connection between the sections.

2: the baking tunnel is insulated with 20CM-25CM layer of high-quality insulation material, in order to reduce heat loss to a minimum.

3. Inspection door on the control side

4. Stainless steel side and top outside panel.

5. The temperature is measured in each zone, both temperature underneath and above the product to be baked. PT-100 sensors are fitted in the baking tunnel for this purpose. The measured values for each zone can be read both on the central control panel (touch panel) and moisture instrument.

6. In the event of a driving motor failure, the belt can be driven by the hand device. This could send the product out of the oven.

7. OMRON PLC system is built into the control cabinet for the control of the oven.

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 2

Suction Depanner/ Needle Depanner/ push-bar depanner/Flip-over depanner

By means of a pick-and-place principle, a depanning head is positioned above pans; the (exchangeable) depanning head picks up the product and then transfers it to the cooling conveyor and releases it.

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 3

Conveyors

1. PLC systems can monitor faults and showing alarm information in English according to the customer’s requirement. It has an open communication interface for the internet and is free to connect with other controlled systems and computer systems.

2. Incorporated the design of Europe and Japan into our equipment. Maximum reduce the cost of labor and realize real automation.

3. According to the workshop area and the requirement of manufacturing to perfectly design the size and structure.

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 4

Our worshop:

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 5

Packaging and delivery:

Suction Depanner Step Proofer Fully Automatic Bread Production Line PLC System 6
