Product Description

 Bakery Equipment Semi-Automatic Bread Production Line



This is a custom-made turnkey project designed for making various types of  bread.With regard to the client´s need, type of the production and the selected equipment we are capable to supply these lines as semi-automated and but also as fully automated.

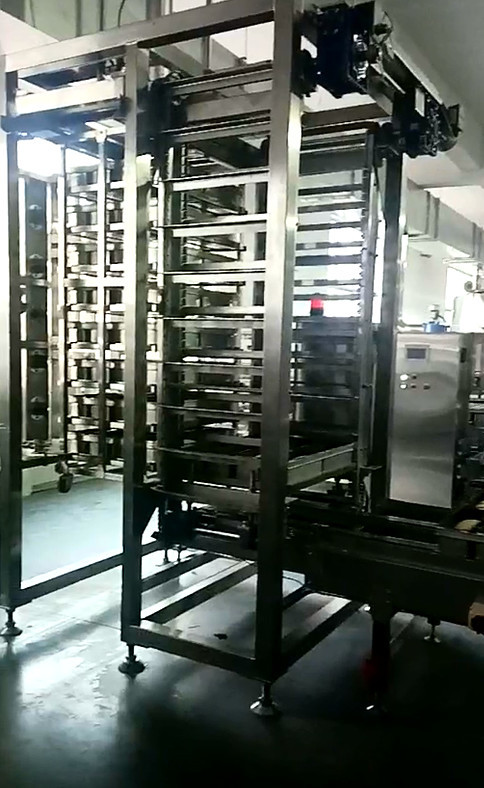

Trolley loader

After dough preparation and make-up line, the baking pan with dough pieces are fed into trolley automatically  by using a auto trolley loader for people push them to a static proving room.

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 0

Trolley unloader

After proofing, the pan goes down from trolley via auto trolley un-loader and infeed to oven.

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 1



Tunnel oven

Either the air/gas proportional controlled direct heated tunnel oven or air circulation type indirect heated tunnel oven can be used for baking.



Hot air blowing direction 2 sections from up to down, 3 sections from down to up
Belt quantity per section 1
Belt working area 14.6 m2
Rated thermal power (adjustable) 200-320 kW
Belt moving speed 0.4-0.243 m/min
Power supply 3 phase 38V 50Hz or on request
Heaters installed power 360 kW
Fans installed power 15.0 kW
Belt drive installed power 0.55 kW
Belt cleaning block installed power 0.37 kW
Product spreader installed power 1.5 kW
Size of the working chamber (WxHxL) see the drawing
Weight about 5.0 tons

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 2



Needle Depanner/suction depanner/ flip-over depanner/push-bar depanner ( optional)

After baking, the suction depanner/needle depanner/flip –over depanner will take the products out from moulds. The baked products are cooled by spiral cooler and the empty pans return through the pan cooling tunnel to the dough positioning and panning machine. And enter into next cycle.

1. The Needle Depanner is designed for products that need extra care or with fillings inside, where vacuum depanner is not applicable.

2. The pans are positioned under depanner with the help of sensors and cylinder clamps. By means of pick and place, the needles are pushed into the products then move onto the cooling belt where the products are released gently.

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 3



Cooling conveyor

1. PLC systems can monitor faults and showing alarm information in English according to the customer’s requirement. It has an open communication interface for the internet and is free to connect with other controlled systems and computer systems.

2. Incorporated the design of Europe and Japan into our equipment. Maximum reduce the cost of labor and realize real automation.

3. According to the workshop area and the requirement of manufacturing to perfectly design the size and structure.

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 4

Multifunctional Automatic Bread Production Line Commercial Assembly Production Line 5




Advantages:
1. Multifunctional Function & available for making various of food, including sticky products or thin skin juicy products.
2. Made of 304 stainless steel, consistent with the International food safety standards, easy for operating, cleaning,assembling and repairing.
3. Easy to operate, PLC intelligent control system with colorful touch screen, Japanese Panasonic's or Taiwan Delta frequency convertor.
