Fully Automatic Croissant industrial Production Line

Place of Origin China
Brand Name SAIMAI
Certification CE,ISO9000
Model Number NO
Minimum Order Quantity 1
Price Negotaible
Packaging Details wooden case, wooden pallet
Delivery Time 90days
Payment Terms T/T, L/C
Supply Ability 90-120days/1set

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Warranty 1Year
Name Croissant Making Production Line Application Croissant And Puff Pastry Production
After-sales Service Provided Engineers Available To Service Machinery Overseas, Online Support
Leave a Message
Product Description

The croissant is made of puff pastry dough, the mixture of flour, sugar, butter, yeast and water is kneaded, then divided into several pieces of dough, before letting it rest. The croissants are then shaped and baked at 180°C for about fifteen minutes.



We can customize our production lines to match the factory layout and design of our clients’ existing plants.



The line can be equipped with:

Make-up line

Automatic Step-proofer

Automatic Trolley Loader (optional)

Automatic Trolley Un- Loader (optional)

Tunnel Oven

Pan buffer (Optional)

Needle Depanner/ push-type depanner

Spiral Cooler

Cream/Jam injector

Packaging machines

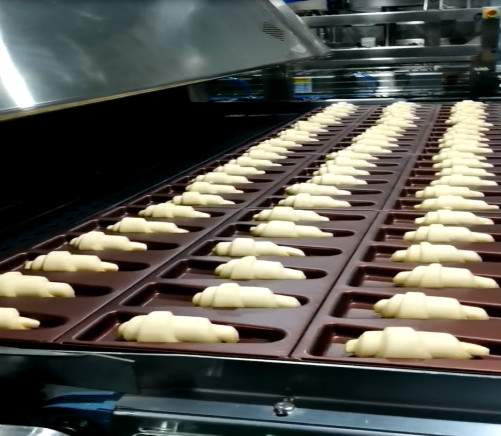

Make-up Line

Cooperate with the best Forming equipment manufacturer in China to ensure produce the best baking products for customers

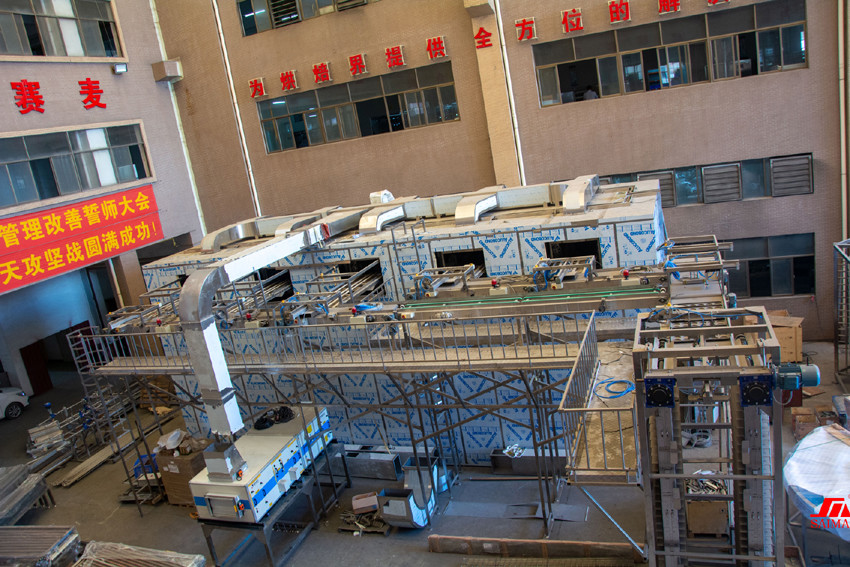

Final prooing system

Fully Automatic Croissant industrial Production Line 0

Pans, trays can all be handled by the proofing room. Different tray types can be used as long as their outer dimensions are equal. The proofing room has several racks that consist of one or more levels, making the proofing time and capacity flexible without increasing the floor space.

The pans are fed into the proofer by conveyor and do not touch each other. Once a row is filled, it is lifted with an L-shape carrier. This process is repeated until the first dough has reached the top level. Then, the pans are moved out of the proofing room.

The proofing room is accommodated with a temperature and humidity control system and insulated housing.

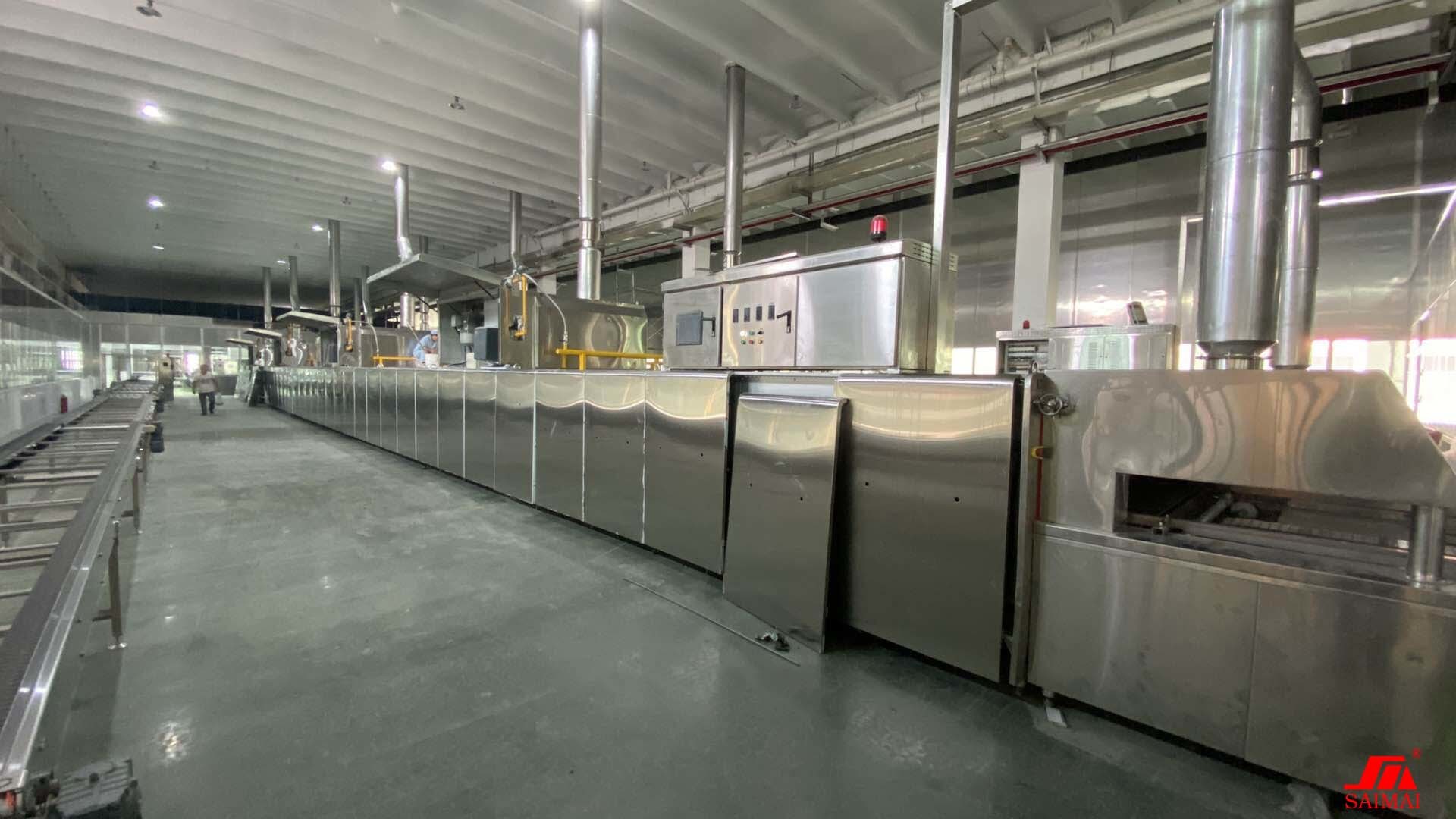

Tunnel oven:

Fully Automatic Croissant industrial Production Line 1

1.1 The oven is constructed gas-tight baking tunnel divided into 2m/ section, each section with a gas-tight connection between the units.

1.2 The baking tunnels are insulated with high-quality insulation material to reduce heat loss to a minimum.

1.3. Inspection door on the control side

1.4 Stainless steel side and top outside panel

HEATING SYSTEM

The indirect heating system is controlled by a hot air circulation system. The heat is transferred and exhausted from the heat exchanger, and the high-temperature fan sucks the air from the baking chamber and sends it first through the heat exchanger and then to the plenums positioned over and under the baking conveyor. The ratio of top/bottom heat is infinitely adjustable by means of a damper.

The heating box is installed on the top of the tunnel oven. The heat source is gas, and the powerful fan makes heat exchange of air inside of tunnel oven and heat from the heating box continuously. The hot air flows out from a uniquely designed outlet to bake the product all around stably. The burning chamber is made of stainless steel δ3.0. The heat exchange chamber is made of stainless steel δ2.0 and a specially designed screwed pipe.

The air tunnel is bent by carbon steel δ2.0 and is punched and welded to guarantee the creation of heat evenly.

Using the motor of the fan with the brand ABB and the burner with the brand Weishaupt, the heating power be divided into ten stages and can be adjusted, which can help the burning system run stably and safely and save energy.

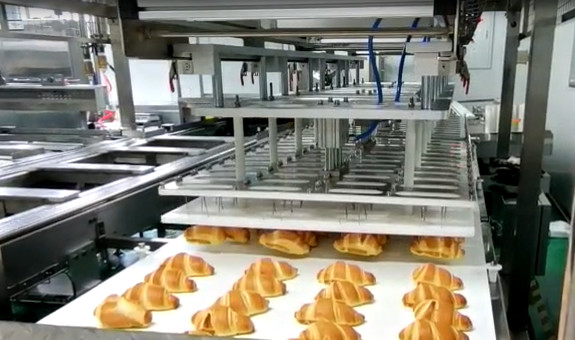

Needle Depanner

Fully Automatic Croissant industrial Production Line 2

By means of a pick-and-place principle, a depanning head is positioned above pans; the (exchangeable) depanning head picks up the product and then transfers it to the cooling conveyor and releases it.

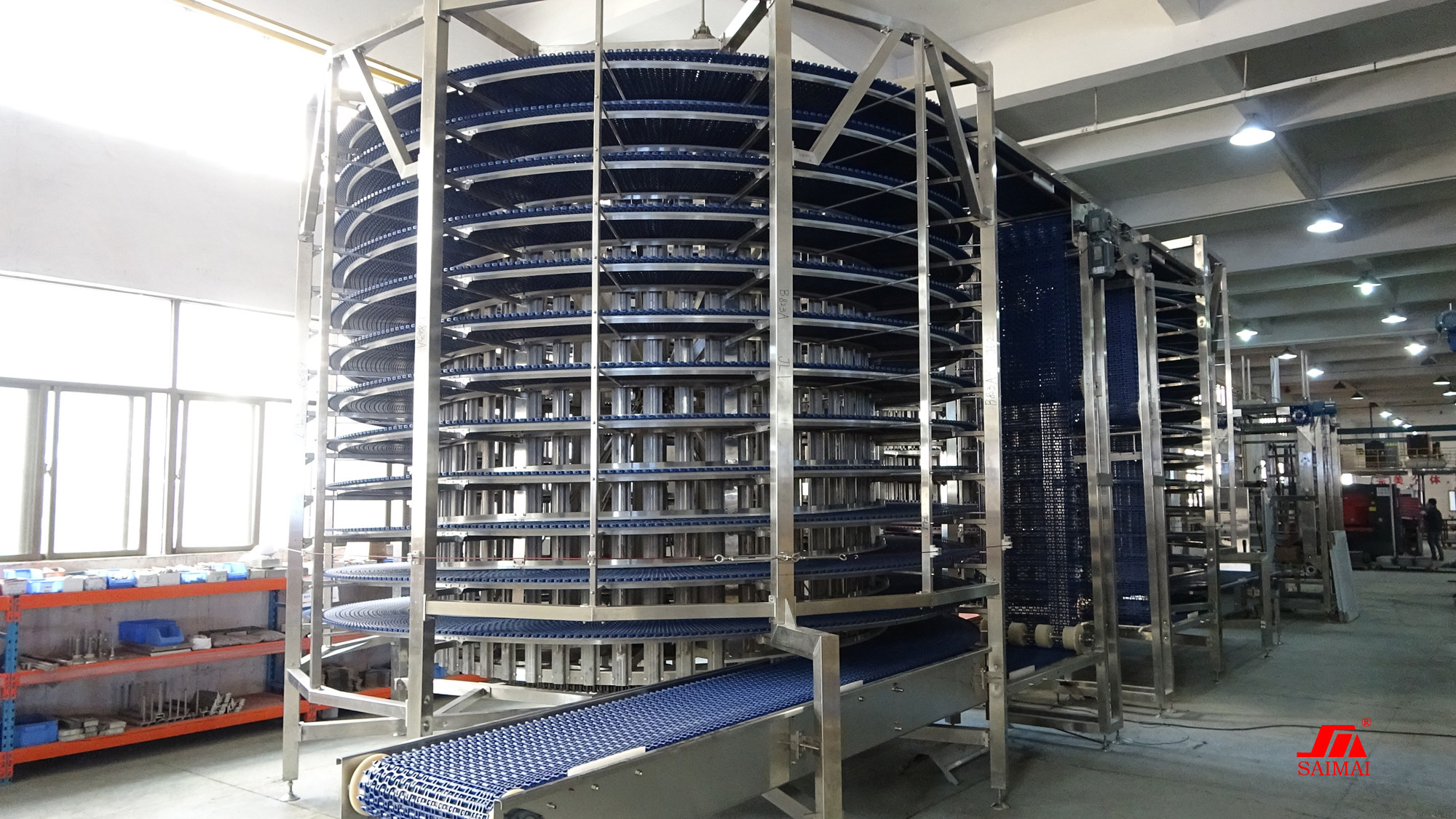

Spiral Cooling Tower

Fully Automatic Croissant industrial Production Line 3

Our spiral cooling tower is suitable for the food industry, light industry, and the optimal conveying equipment during the automatic continuous production. It is widely used in food cooling, conveying, and so on.



Features:

1. It can be customized to meet customer requirements and designed to be the most suitable size and structure for your product.

2. Reliably and practicability: It is in accord with ergonomics and durability.

3. Using SEW drive and SIEMENS DEIVE to ensure the stability of the equipment.

4. Strict food safety standard: Smooth and clean surface, opening design and stainless structure make it easy to be cleaned.

5. Its advantages as below: beautiful shape and good quality; transmit steadily and smoothly with low voice; easy operation and low maintenance cost.

6.Optional for the cleaning system, the cleaning system has circulating hot water, steam cleaning, residue removing, and strong wind function.



Our team:

Fully Automatic Croissant industrial Production Line 4
